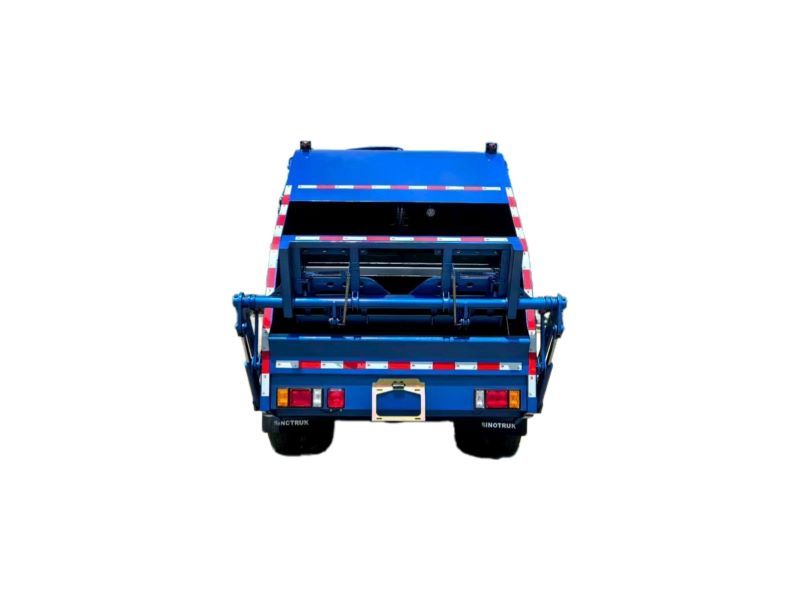

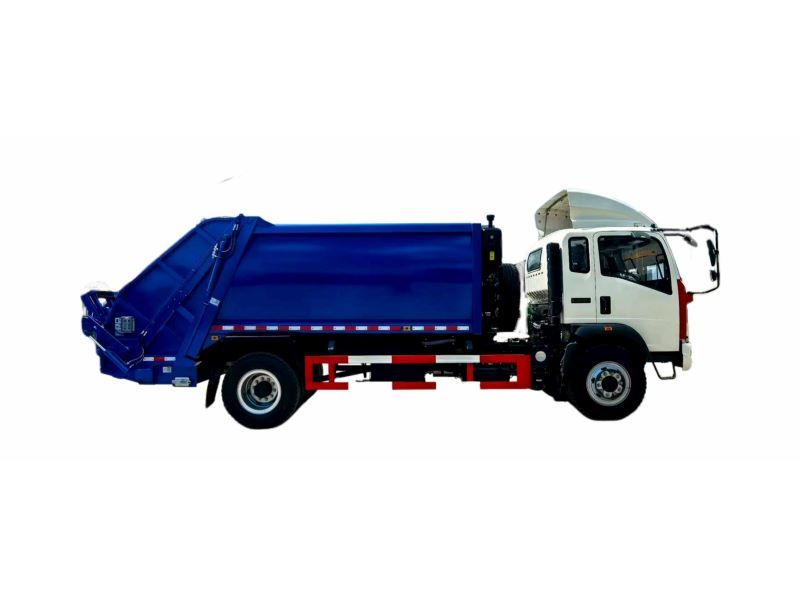

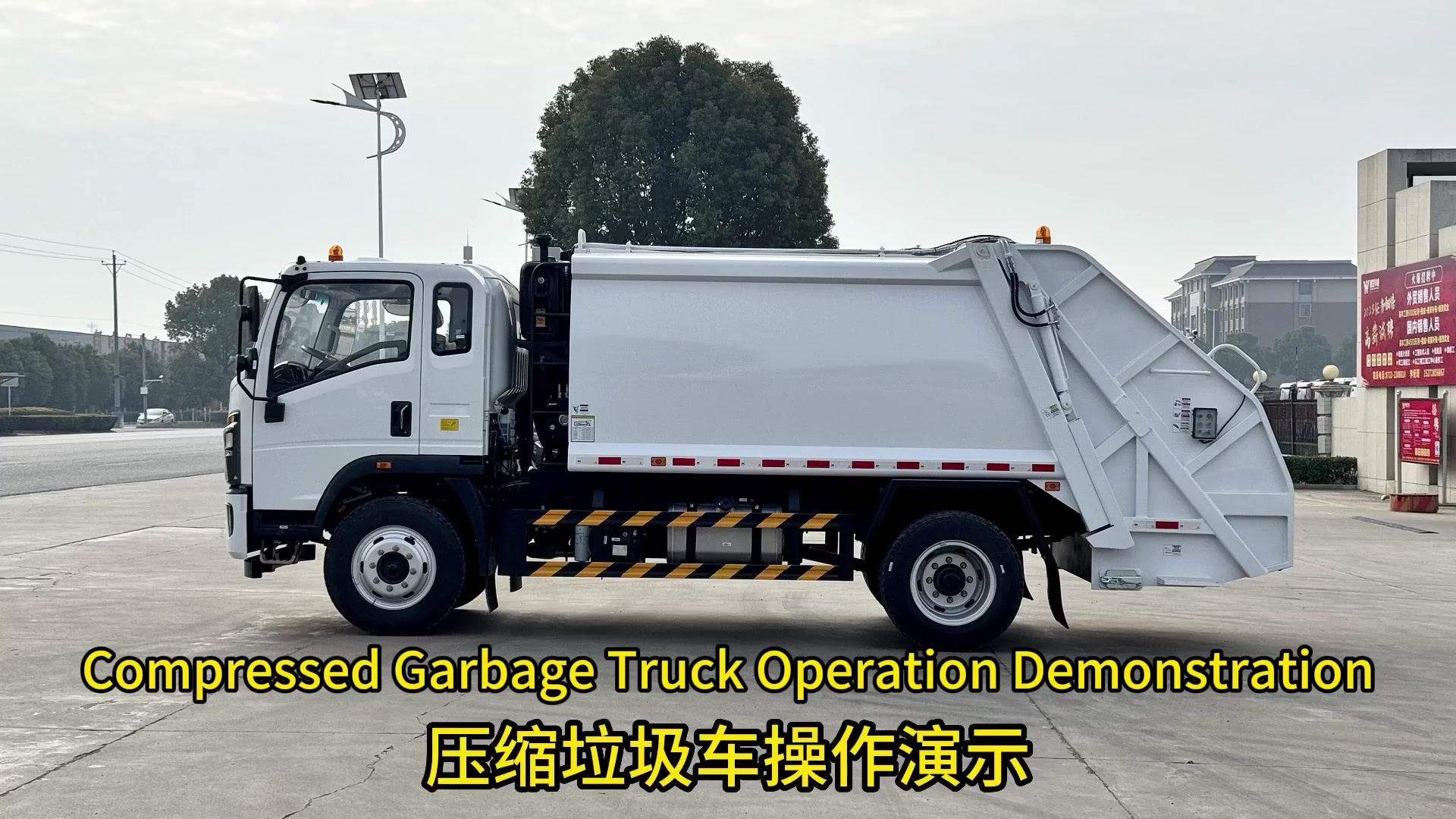

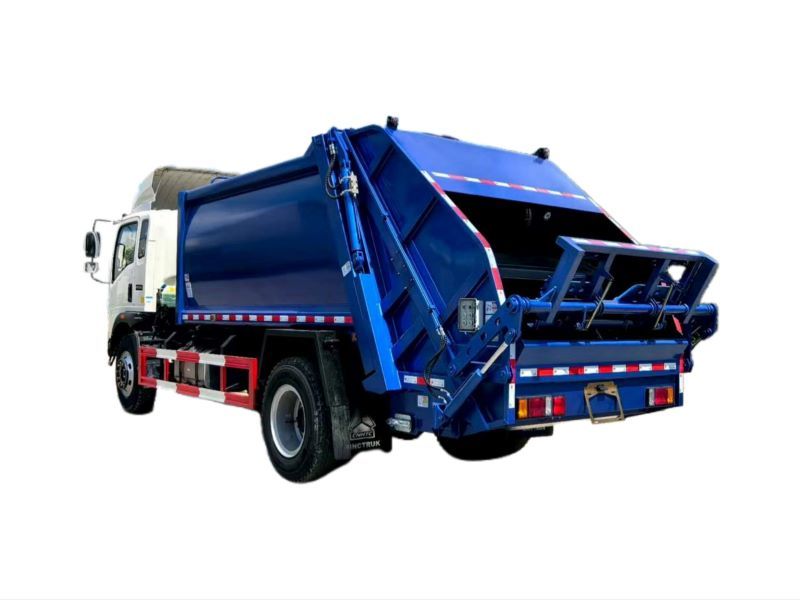

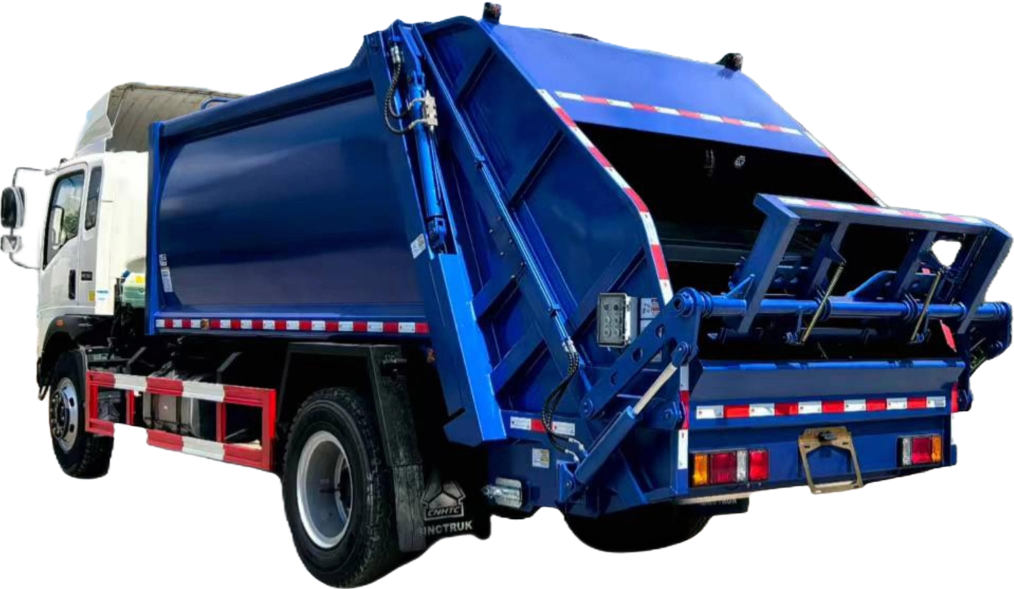

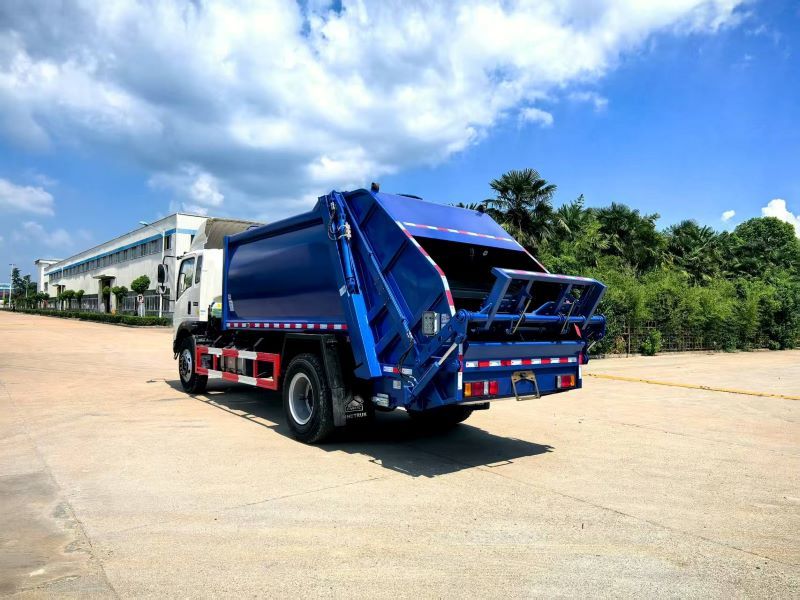

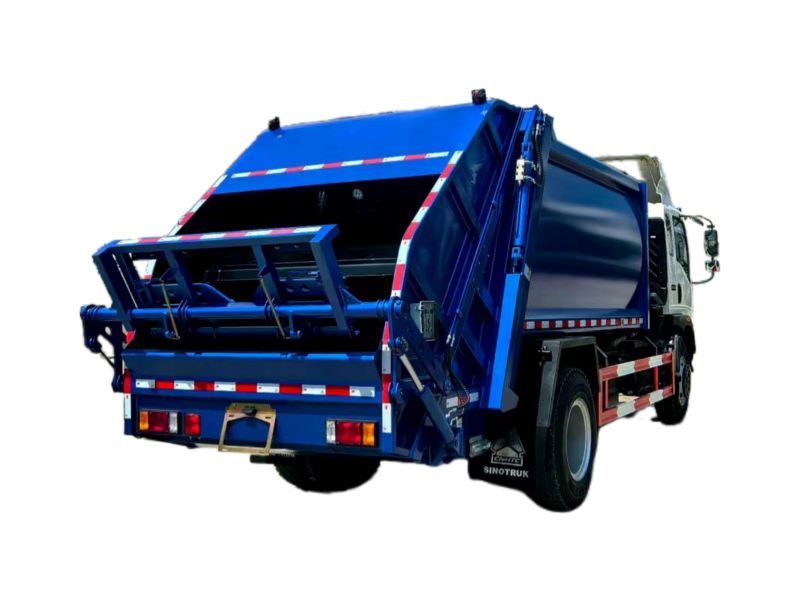

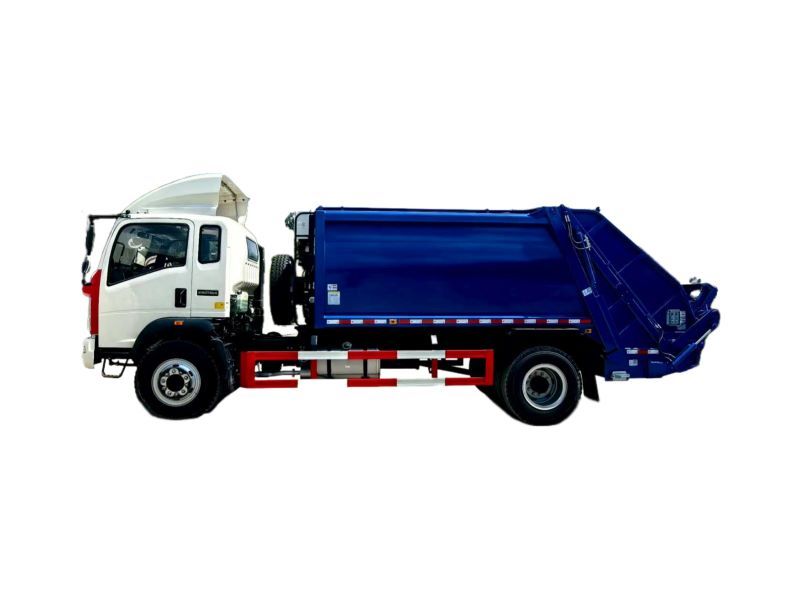

8m³ Compressed Garbage Truck
Keywords:compressed garbage truck,sanitation
Category:
产品手册：
- Description
-
- Commodity name: 8m³ Compressed Garbage Truck
Garbage truck is used for municipal sanitation and large factories and mines, used to transport all kinds of rubbish, apply to the transportation living garbage. By compressing and crushing the garbage, can greatly improve the efficiency of garbage collection and transportation.The 8m³ compressed garbage truck is specifically designed to meet the demands of modern waste management. Its compact size makes it ideal for navigating through narrow streets and crowded urban environments, where larger vehicles may struggle to operate efficiently. Equipped with advanced hydraulic systems, this truck can compress waste to a fraction of its original volume, allowing for a significantly increased load capacity. This feature not only reduces the number of trips required to transport waste to disposal sites but also minimizes fuel consumption and operational costs.
Garbage truck is used for municipal sanitation and large factories and mines, used to transport all kinds of rubbish, apply to the transportation living garbage. By compressing and crushing the garbage, can greatly improve the efficiency of garbage collection and transportation.
The 8m³ compressed garbage truck is specifically designed to meet the demands of modern waste management. Its compact size makes it ideal for navigating through narrow streets and crowded urban environments, where larger vehicles may struggle to operate efficiently. Equipped with advanced hydraulic systems, this truck can compress waste to a fraction of its original volume, allowing for a significantly increased load capacity. This feature not only reduces the number of trips required to transport waste to disposal sites but also minimizes fuel consumption and operational costs.
Standard Configuration electrical controlsystemControl methodPLCOperation methodElectrical control+manual control(with remote control)PLC brand/model/working voltage/quantitySelf-developed/6430/24v/1Solenoid valve brand/model/working voltage/quantitySono Tiangong/TG3522-08E/24V/5Sensor brand/model/working voltage/quantitySODRON/SN30-15BNA-K47G/24V/2Pressure regulating valve brand/model/quantityBailing/BAW2000-02Gz/1Air hose brand/modelZhejiang Zhuorei/Φ6×4mmAir connector brand/modelTebote/GPC6-02Outdoor electric control box location/quantityLeft and right sides of the rear of the filling device/2Indoor electric control box location/quantityPushing and discharging, operating Mode Selection/1Outdoor electric control box functionsManual/automatic mode switching, bucket lifting device flip/lift/stop/lowercontrol, filler scraper single cycle and continuous cycle, scraper opening,scraper closing, slide plate up/down movement, cycle stop, emergency stop.feedingmechanismApplicable types240L trash canFiller device bucket rod/ Other requirements/ Upper parametersEffective volume of garbage bin8 m³loading cycle time≤10Loading cycle time≤20Filling device lifting time≤15Unloading cycle time≤60garbage binBase plate thickness/material5 mm/T420Side panel thickness/material4 mm /T420Top panel thickness/material4 mm /T420Front panel thickness/material3 mm /T420Longitudinal beam thickness/material6 mm /T420Filling deviceSlide cylinder structureinsideArc bottom plate thickness/material8 mm /Q355BFront base plate thickness/material8mm/ Q355BSide plate thickness/material4mm/T420Filling device rear coverWithoutFilling device attachmentWithoutHydraulic systemSystem pressure (MPa)≥18System typeSingle pumpGear pump brand/model/parametersChangyuan Hydraulics/CBNZQ-F550/Displacemen: 50mL/r/rated pressure:20MpaHydraulic cylinder brandConstant forceMulti-way valvebrand/model/parametersChangyuan HydraulicsSQDLC7b-F15L-T/J(A)OOOOO /flowrate:65L/min, pressure:20Mpaback pressure valve brand/modelRY130403Balance valvebrand/model/parametersJiangsu Dingsheng/HA-25160BF/flowrate:60L/minHydraulic steel pipeGlobal Pass (EN853 standard, EatonWF pipe end forming process)Hydraulic hoseHuilong (pipe fittings and Filter jointare made of Yonghua standard 45#steel)CompressionloadingmechanismScraper bottom platethickness/material5/Q355BScraper side plate thickness/material12/Q355BSliding plate base platethickness/material4/Q355BSliding plate base platethickness/material12/Q355Bpush platemechanismPush plate cylinderOblique push/3-section cylinderPush plate panel thickness/material4/Q355BOil cylinder partPush plate cylinder/quantity63/90/125 (Imported oil seal) /1Sliding plate cylinder/quantity80/40 (Imported oil seal) /2Scraper cylinder/quantity80/45 (Imported oil seal) /2Lifting cylinder/quantity70/45 (Imported oil seal) /2Flipping bucket cylinder/quantity63/35 (Imported oil seal) /2Lighting fixtures/quantity/working voltageRear clearance lights: 2/24vRear license plate lights: 1/24vRear work lights: 1/24vSide marker lights: 6/24vVehicle accessoriesSide guardrail, fender, main andsubframe connection parts, alarm light
The product is constantly improving and the configuration parameters are constantly updated. We reserve the right to change the design and parameters without informing the user; The configuration and appearance of the product shall be based on the actual product.
