Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake
The 3-axle 40 feet container flatbed semi-trailer is the most popular model. We can also supply 20ft 45ft, 48ft, 53ft etc, 2/3/4 axles, capacity from 60 to 100 tons container flatbed semi-trailers.
which is knows also low loader and can carry heavy loads , excavators , construction machines, transformer, generator , cranes , caravans , army tanks and different kind of big machines. Low bed Semi Trailers can be produced between 2 axles to 8 axles and loading capacity starting from 20 Tons to 120 Tons , rear or front loading Low bed Trailers and platform as customer demand with different kind of specification according to demand. Self steering axles, hydraulic auto remote control axles, pool type chassis, Low bed Trailers hydraulic ramp, platform type chassis can be used in different kind of Low bed trailer.
which is knows also low loader and can carry heavy loads , excavators , construction machines, transformer, generator , cranes , caravans , army tanks and different kind of big machines. Low bed Semi Trailers can be produced between 2 axles to 8 axles and loading capacity starting from 20 Tons to 120 Tons , rear or front loading Low bed Trailers and platform as customer demand with different kind of specification according to demand. Self steering axles, hydraulic auto remote control axles, pool type chassis, Low bed Trailers hydraulic ramp, platform type chassis can be used in different kind of Low bed trailer.
Extendable /Widner Lowbed Semi Trailer
The trailer has the function of widner. It designs according to its basic width 2500mm with extending to 3500mm. The height of platform keeps under 1000mm, which can suits different cargo of varied height and width.
3 Axle Aluminum Tank Semi-trailer
Aluminum tank trailers weigh on average 30 – 35% less than steel tank trailers.
This means that you’ll be able to haul more with an aluminum tank trailer versus a steel one. The tanker volume can do bigger than a steel tanker under the same Road loading limited. Additionally, you’ll save money on gas when you happen to not be carrying a load
Tank-type semi-trailer is a semi-trailer with tank-type structure in the cargo-carrying part. It is mainly used for the transportation of liquids, bulk materials and bulk cement.
The Acid tanker trailer is designed to store and for transport acid or liquid additives, etc. For oilfield and mining use. The fill & discharge lines are located on the bottom for easy access. Manholes are located at top for easy access. The tank trailer is equipped with ladders, walkways, handrails, discharge manifold ,etc.
The Acid tanker trailer is designed to store and for transport acid or liquid additives, etc. For oilfield and mining use. The fill & discharge lines are located on the bottom for easy access. Manholes are located at top for easy access. The tank trailer is equipped with ladders, walkways, handrails, discharge manifold ,etc.
Van-type semi-trailer cargo part of the frame structure and no floor, specializing in the transportation of semi-trailer of the container box, the first third car is to pull the bulk cargo, the middle of the middle to pull the distribution of goods of the fully enclosed boxcar, suitable for household appliances, light textile goods, coal, sand and gravel and other construction materials, as well as the transportation of goods of the figure plate.
Description:
Van-type semi-trailer cargo part of the frame structure and no floor, specializing in the transportation of semi-trailer of the container box, the first third car is to pull the bulk cargo, the middle of the middle to pull the distribution of goods of the fully enclosed boxcar, suitable for household appliances, light textile goods, coal, sand and gravel and other construction materials, as well as the transportation of goods of the figure plate.
DIMENSIONS
Tare Weight
4500kg
China new 3 axle Van semi trailer for sale
Overall Length
13000mm
Overall Width
2480mm
Payload
3650kg
Photo for reference. Final products can be made according to exact requirements
SPECIFICATION
Chassis
Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,height 500mm; Bottom Flange 16mm,width 140mm.
Axle
HJ Brand: 2X 13000KGS axles of Germany design
Suspension
Germany design heavy duty mechanical suspension
Leaf Spring
Leaf spring
King Pin
JOST 2.0” Bolt-in King Pin
Landing Gear
JOST Two-speed, manual operating, heavy duty landing gear
Wheel Rim
9.00-22.5 steel wheel rim, 8pcs
Tire
12R22.5 Tubeless Tire, 8pcs
Spare Tire
One set of spare tire including a carrier
Braking System
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber
Painting
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories
One standard tool box
Made of high-strength steel, making it sturdy and durable when loading sand, small stones or rocks. The loading capacity is 40 tons, 60 tons and 80 tons.
The top bar of side tipping semi-trailer is generally distributed evenly in the bottom of the cargo compartment in the shape of a word, with large lifting strength and improved lateral stability. Especially for the semi-trailer with longer cargo compartment, the side tipping type dump is more suitable.

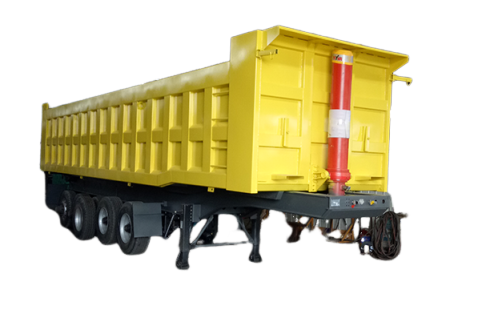

24cbm 3 axles U Shape Dump Semi Trailer
Dump Trailers is used for carrying bulk materials. In this kind of trailers you can carry stone, wreck stones, sand and any kind of bulk materials. In Tipper Trailers there is a hydraulic cylinder applied by our company that works to lift the whole trailer we can made different loading capacities starting from 24 m3 up to 45 m3 as the costumer demand with different suspension types . We can offer customers different kind of Tipper Trailers solutions for their loads.
3 Axle 26CBM Sewage Suction Semi-trailer with Lift and Pump
This sewage suction semi-trailer is suitable for suction,transportation and dumping soil and mud from various sewer man-hole,oil field,water wells and sediment.
3 Axle 26CBM Sludge Semi-trailer with Pump
This sewage suction semi-trailer is suitable for suction,transportation and dumping soil and mud from various sewer man-hole,oil field,water wells and sediment.

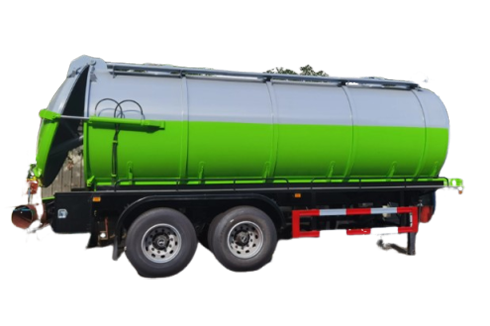

2 Axle 20000 Liter Vacuum Sewage Tanker Semi Trailer
This sewage suction semi-trailer is suitable for suction,transportation and dumping soil and mud from various sewer man-hole,oil field,water wells and sediment.

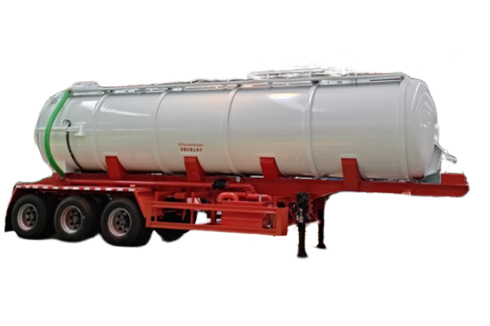

3 Axle 20000 Liter Vacuum Suction Semi Trailer
This sewage suction semi-trailer is suitable for suction,transportation and dumping soil and mud from various sewer man-hole,oil field,water wells and sediment.
