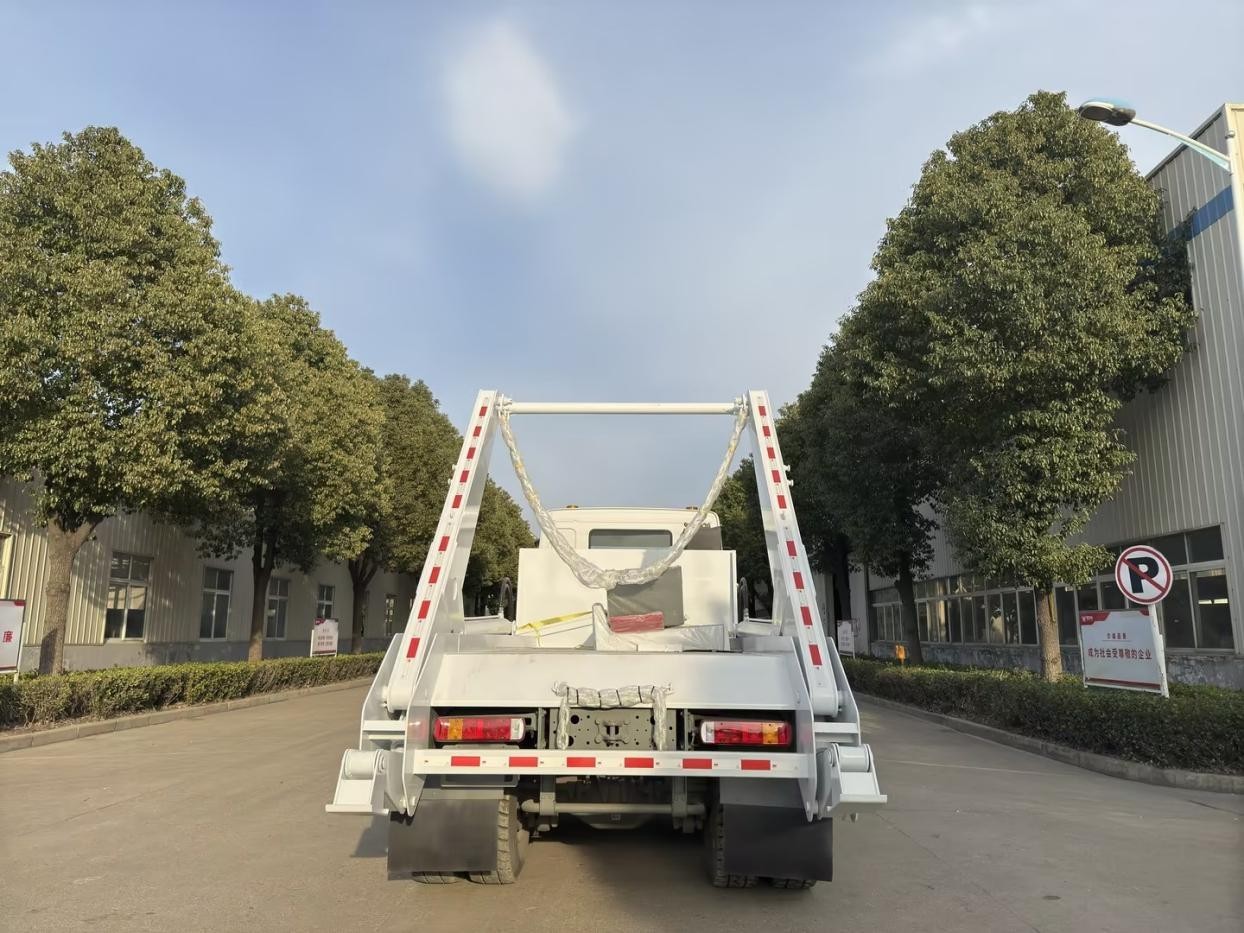

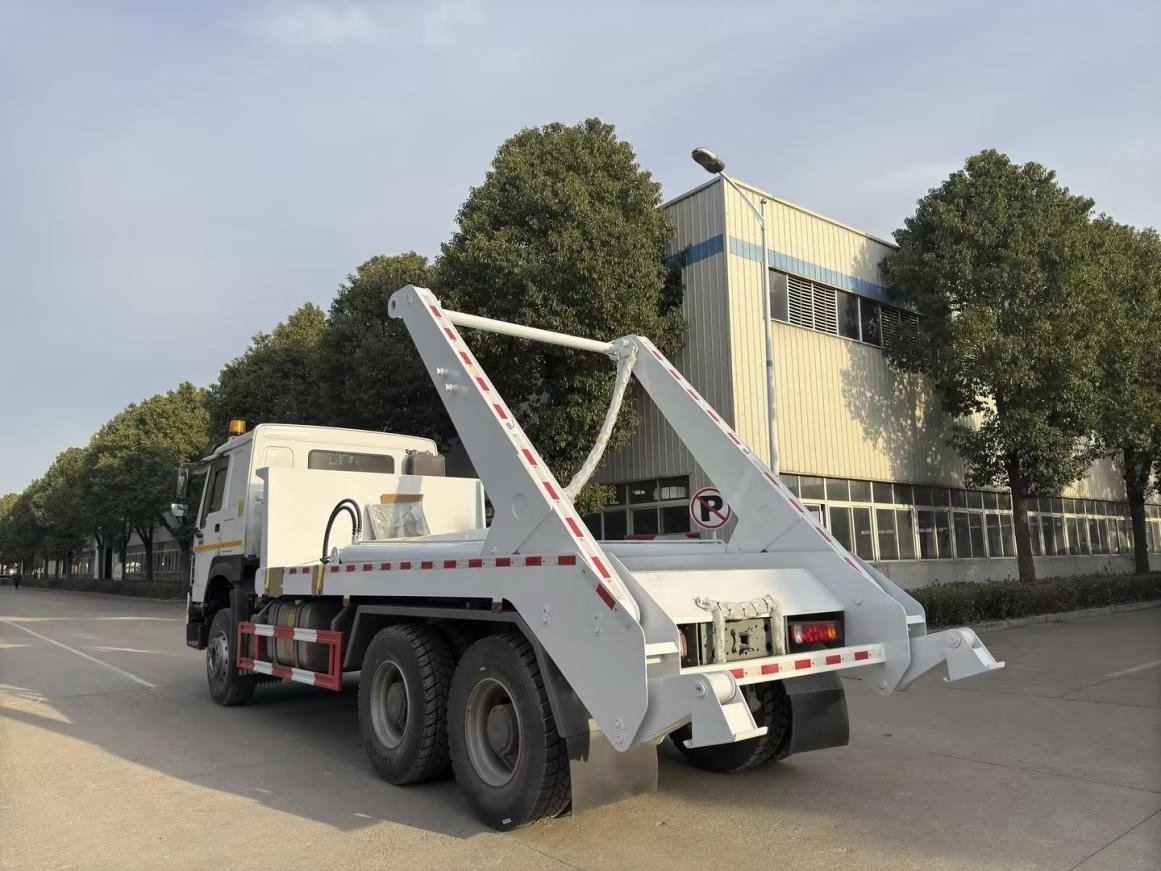

HOWO 6×4 Swing Arm Garbage Truck 14CBM with Hanging Chain and Hydraulic Lifting Waste Removal Truck
Keywords:
Swing Arm Garbage Truck
Category:
产品手册：
- Description
-
- Commodity name: HOWO 6×4 Swing Arm Garbage Truck 14CBM with Hanging Chain and Hydraulic Lifting Waste Removal Truck
Swing Arm Garbage Truck is also called garbage collecting truck, garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport household waste in residential area.
Competitive Advantage:
1) The vehicle function is complete, easy to operate, big garbage loading capacity.
2) The hydraulic drive and electronic program controller control is more accurate and with reliable performance.
3) The optimized hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
4) Low fuel consumption.
5) Based on strong technical support and top level technology make the trucks with high quality and more Reliable.
Configuration:
Dimension:85000*2500*3450mm
Chassis model:ZZ3257N4347B1R
Emission standard: EURⅡ
Cab：HW76 new front face cab
Engine: WP10.340E22
Horsepower:340 hp
HW19710 gearbox + HW50 direct coupled extractor
Front axle:VGD95
Rear axle:MCP16ZG dual rear axle
Double frame (8+8/300)
Front and rear reinforced multi-leaf springs (10/12)
Wheelbase:4300
Tire:315/80R22.5
Upper Configuration
1. Transportation medium: domestic garbage.
2. 14Ton swing arm lifting capacity.
3. Made of carbon steel, base plate 4mm, side plate and arm 8mm.
4. Swinging arm mechanism with hydraulic outrigger at the back.
5. Hydraulic system: the cylinder adopts domestic high-quality cylinder, oil pump, multi-way valve (operated outside the cab).
6. Swing arm chain adopts adjustable hook device;
7. Operation mode: manual. External multi-way valve operation.
8. Ferrule type pipe connector, swing arm lifting and lowering with two-way balance valve, with a set of manual throttle.
9. Fender side support tube is 50 x 3 with reinforcement plate.
10. Paint: plain color paint, sprayed according to customer requirements, the whole car spray word to be determined. The rest of the company standard.
11. Wax spraying for the whole car. Weighing, playing ruler, top color:white.
The product is constantly improving and the configuration parameters are constantly updated. We reserve the right to change the design and parameters without informing the user; The configuration and appearance of the product shall be based on the actual product.
