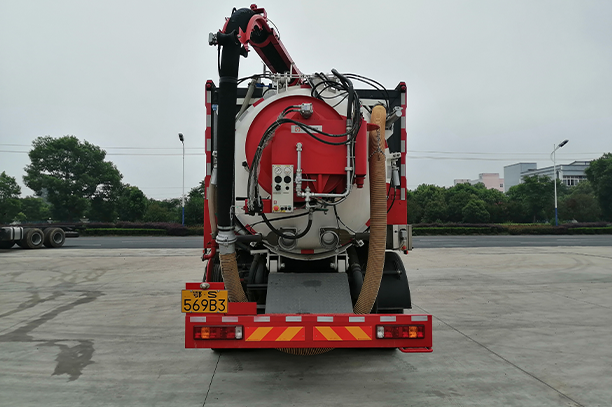

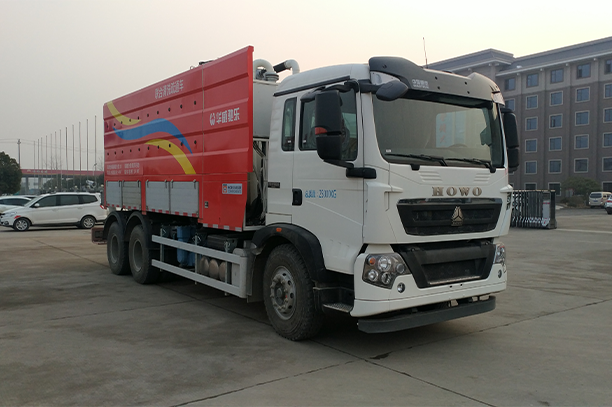

Howo TX Truck with Tank Cleaning Suction Pipeline Combined Dredging Truck
Keywords:
sewer dredging and cleaning vehicles
Category:
产品手册：
- Description
-
- Commodity name: Howo TX Truck with Tank Cleaning Suction Pipeline Combined Dredging Truck
Huawei Chille brand sewer dredging and cleaning vehicles are mainly used for cleaning city sewers, pipeline sediments, dead end mud ditch dredging, can also be used for cleaning industrial drainage pipelines, walls, etc.
Sinotruk Hubei Huawin developed Huawei Chille brand sewer dredging and cleaning vehicles are mainly used for cleaning city sewers, pipeline sediments, dead end mud ditch dredging, can also be used for cleaning industrial drainage pipelines, walls, etc., cleaning highways, plaza floors. High-pressure cleaning truck can also be added with sprinkler device, installed green sprinkler gun, front punch, rear sprinkler, side spray, can be green sprinkler, spraying, dust pressure, high-pressure road washing, etc., and can be used for firefighting in case of emergency.
●Used for flushing, dredging, suction of sewers and rivers.
●Sandwich extractor, adopting domestic famous brand extractor, with reliable quality and low transmission wear and tear.

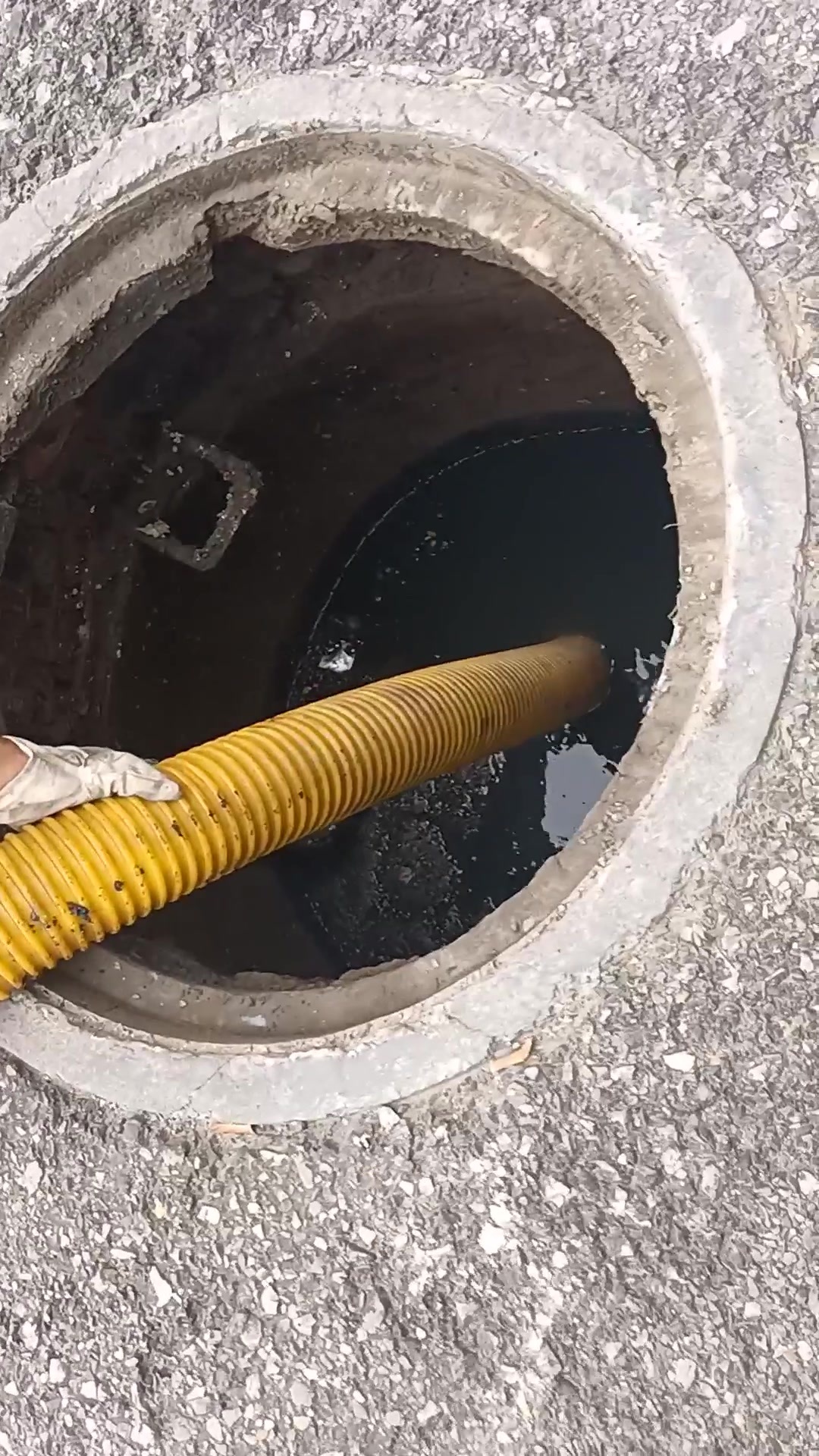

●Vacuum suction height of not less than 9m, horizontal suction distance of not less than 50m, suction of a tank of sewage only 3min.
●High-pressure dredging and cleaning, water pressure up to 22Mpa, large flow, dredging distance, working pressure can be freely adjusted, high-pressure dredging hose hydraulic retraction, equipped with more than two different dredging conditions of the high-pressure nozzle.
●Optional hydraulic boom, relying on hydraulic drive can realize horizontal rotation, up and down movement, front and rear expansion and contraction; unloading mode of self-flowing and forced discharge.
● Optional sewage recycling system to extend the working time.
● Centralized control system, adding intelligent control box at the rear of the vehicle, realizing the integration of intelligent operation and reducing manual workload.
Specification of Howo TX Combined Dredging Truck
Chassis model: ZZ1257N464GF1
Engine: MC07.27-60 198hp
Drive type: 6×4
Total mass: 25000 KG
High pressure pumps maximum pressure: 20 MPa
Maximum flow rate of high pressure pumps: 290 L/min
High pressure water pump length: 120 m
Reel speed: 0-30 m/min
Unclogging and Cleaning Pipe Diameter: 150-800 mm
Maximum flow rate of the vacuum pump: 1700 m³/h
Sewage tank volume: 14000 L
Fresh water tank volume：4200L
The product is constantly improving and the configuration parameters are constantly updated. We reserve the right to change the design and parameters without informing the user; The configuration and appearance of the product shall be based on the actual product.
