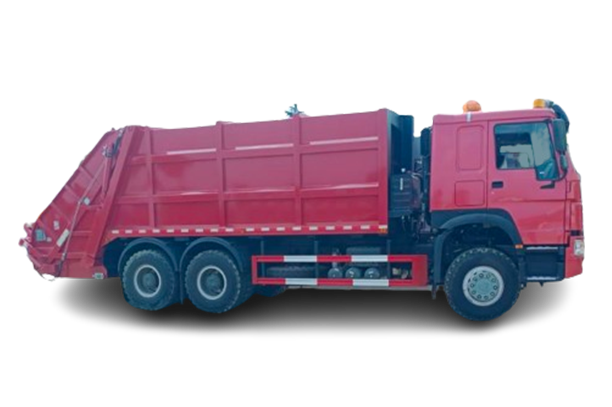

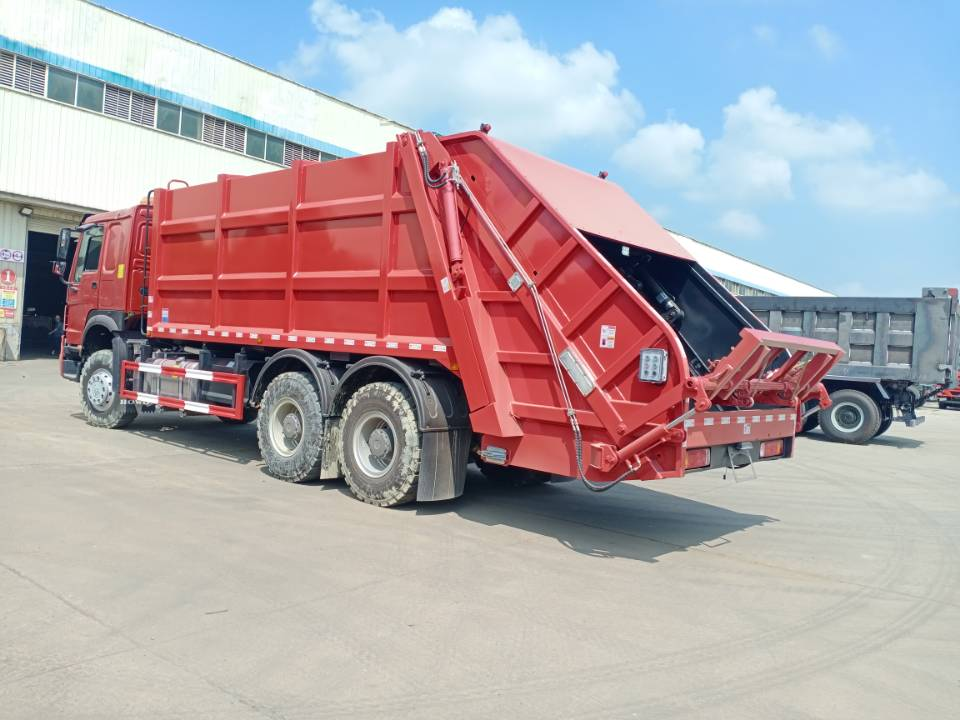

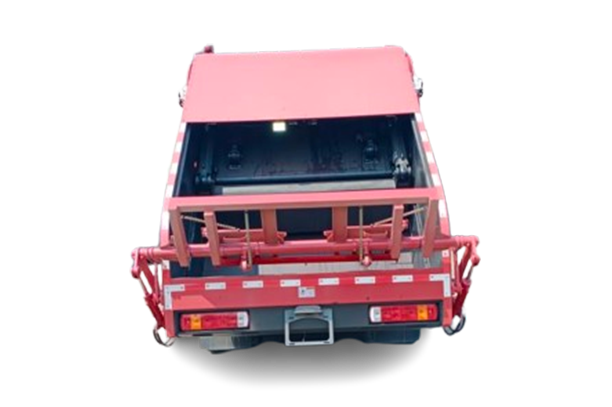

Compressed Garbage Truck 20m³
Keywords:
garbage
configuration
compressing
Category:
产品手册：
- Description
-
- Commodity name: Compressed Garbage Truck 20m³
Garbage truck is used for municipal sanitation and large factories and mines, used to transport all kinds of rubbish, apply to the transportation living garbage. By compressing and crushing the garbage, can greatly improve the efficiency of garbage collection and transportation.
Garbage truck is used for municipal sanitation and large factories and mines, used to transport all kinds of rubbish, apply to the transportation living garbage. By compressing and crushing the garbage, can greatly improve the efficiency of garbage collection and transportation.
Standard Configuration
Overall Dimension(L×W×H)
10700×2500×3500(mm)
Weight
Curb weight: 12500(kg);
GVM: 25000(kg)
Load Capacity: 12.5T/20m³
Chassis
ZZ3257N4647W
Cab
HW76
Engine
WD615.47/371 hp/Euro II
Transmission
HW19710+HW50-5
Steering
ZF8098
Front Axle
HF9
Rear Axle
HC16 (5.73 ratio)
Tire
12.00R200
Techniques
Q345B, side 5mm bottom 5mm;
Pillar reinforcement on the side of the box
Effective Volume
20m³
Coating Process
Outdoor type electrostatic plastic powder coating process
Hydraulic System Configuration
Extractor; Gear pumps; Multi-Circuit Valve; Cylinders
Electric Control System Configuration
Siemens PLC; 3 controllers
Color
As required
The product is constantly improving and the configuration parameters are constantly updated. We reserve the right to change the design and parameters without informing the user; The configuration and appearance of the product shall be based on the actual product.
