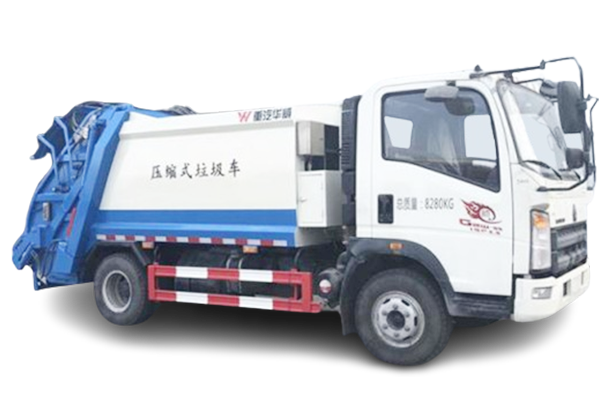

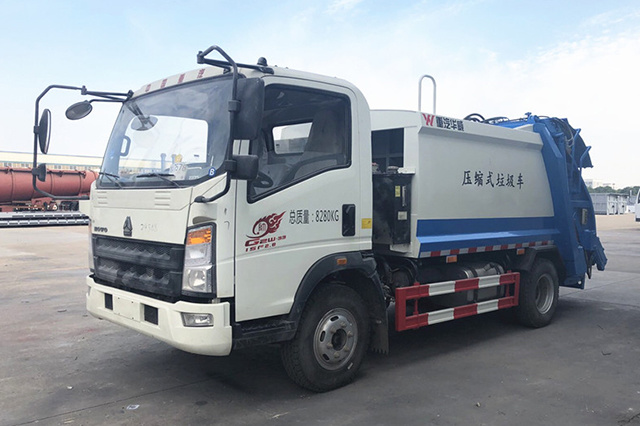

SINOTRUK HOWO 4x2 141hp Garbage Compactor Truck
SINOTRUK HOWO 4x2 141hp Garbage Compactor Truck
SINOTRUK HOWO 4x2 141hp Garbage Compactor Truck
SINOTRUK HOWO 4x2 141hp Garbage Compactor Truck
+
  • SINOTRUK HOWO 4x2 141hp Garbage Compactor Truck
  • SINOTRUK HOWO 4x2 141hp Garbage Compactor Truck
  • SINOTRUK HOWO 4x2 141hp Garbage Compactor Truck
  • SINOTRUK HOWO 4x2 141hp Garbage Compactor Truck

SINOTRUK HOWO 4x2 141hp Garbage Compactor Truck

Mainly with small and flexible, good sealing, strong loading capacity and other main features, widely used in towns and cities, small streets, residential neighborhoods, parks, stations and other non-standard garbage cans garbage (such as if the skin box, bulk garbage) front-end collection.

Keywords:

garbage

loading

hydraulic

产品手册:

  • Description
    • Commodity name: SINOTRUK HOWO 4x2 141hp Garbage Compactor Truck

    Mainly with small and flexible, good sealing, strong loading capacity and other main features, widely used in towns and cities, small streets, residential neighborhoods, parks, stations and other non-standard garbage cans garbage (such as if the skin box, bulk garbage) front-end collection.

    Mainly with small and flexible, good sealing, strong loading capacity and other main features, widely used in towns and cities, small streets, residential neighborhoods, parks, stations and other non-standard garbage cans garbage (such as if the skin box, bulk garbage) front-end collection.



    1



    Specification of HOWO 4X2 6 CBM Garbage Compactor Truck

    Driving Model

    4 X 2

    Cab

    2 passengers, with air condition

    Wheel Base

    3360mm

    Loading Weight

    8280kg

    Axle Loading (front/rear)

    3000 / 5280 kg

    External Dimensions (L x W x H)

    6860 x 2190 x 2540mm

    Overhang (front/rear)

    1160/1780 mm

    Wheel track (front/rear)

    1585 / 1595mm

    Approach/Departure angle

    19°/ 11°

    Max. driving speed

    95km/h

    Type

    4cylinders in a line, turbo-charging and inter-cooling

    Horse Power

    141Hp

    Max output power

    105kW

    Emission standard

    Euro3/ Euro4

    Displacement

    3.76L

    Rated Speed

    2600rpm

    Garbage Truck Body

    Tanker body material

    Q235 carbon steel

    Shape

    rectangular box

    Thickness

    Side 4mm, Bottom 5mm

    Payload capacity

    5m³; 6m3

    Control system

    Electrically Hydraulic control

    Manual hydraulic control

    Power of movement

    Hydraulic pump

    Standard Equipment

    Equipped with hermetic dustbin, hydraulic system and operating system

    Automatic compress and uninstall, sewage can be collected by the tank.

    Pressure is large, leakproof is good, operation is convenient and security is dependable

The product is constantly improving and the configuration parameters are constantly updated. We reserve the right to change the design and parameters without informing the user; The configuration and appearance of the product shall be based on the actual product.
