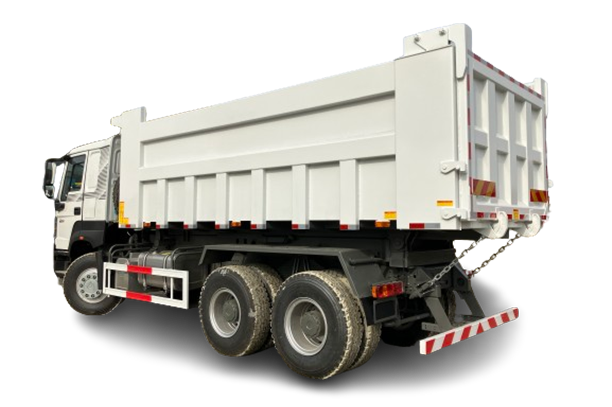

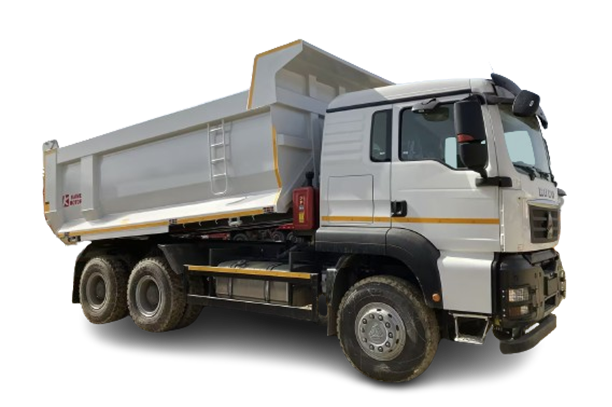

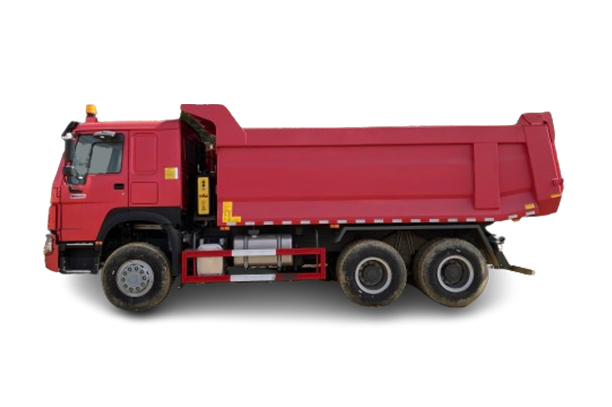

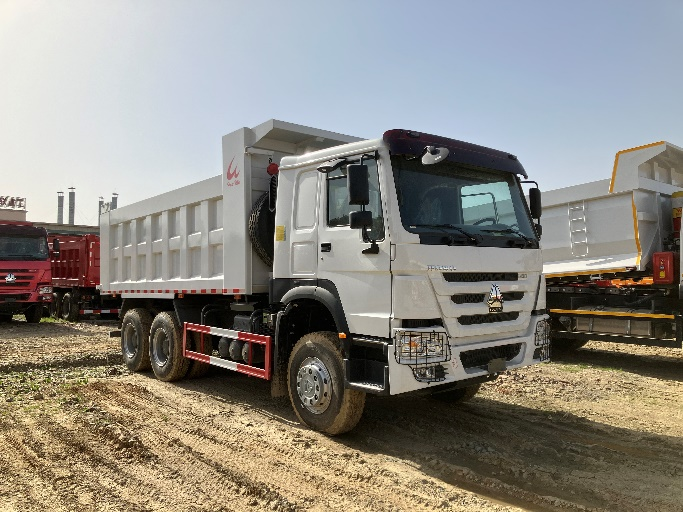

SINOTRUK HOWO Dump Truck

The Dumper can be classified by lifting way, one is rear dump, another is side dump.

Keywords:

6×4 Dump Truck

dump

产品手册:

  • Description
    • Commodity name: SINOTRUK HOWO Dump Truck

    The Dumper can be classified by lifting way, one is rear dump, another is side dump.

    The Dumper can be classified by lifting way, one is rear dump, another is side dump.

    Choosing 2-axles or 3-axies according to the loading request of customer.Dump body material: Q235,Q345,Q610 or wear-resisting steelfor thedump body.

    Type of dump body:U shape or square shape.

    The length of dump body is from 4M to 12M,providing related designaccording to the requirement of customer

    Choosing domesticor famousforeign brandfor themain partsof hydraulic system.

    Optimization design according to the transport goods of customer.





    Standard Configuration

    1. Chassis

    SINOTRUK HOWOV7, 6 x 4 Dumper chassis (ZZ3257N3847B1)

    2. Diesel Engine

    WP10.340 340hp/250kw (euro emission II, III), 9.726L, 1250N.m

    WP10.380 380hp/280kw (euro emission II, III), 9.726L,1600N.m

    WP12.400 400hp/294kw (euro emission II, III, IV, V), 11.596L,1780N.m

    WP12.430 430hp/316kw (euro emission II, III, IV, V), 11.596L, 2060N.m

    3. Wheelbase

    3825+ 1350 (mm)

    4. Frame

    300 (8+8), double layers chassis frame

    5. Axles

    1 x VGD9.5 (9T, Front steering axle)

    2 x MCX16ZG (16T x 2, Rear driving axle)

    6. Suspension

    Multi-leaf springs suspension, 10 / 12 leaves springs

    7. Transmission

    HW19710 + HW50 PTO, manual 10forward / 2 reverse

    8. Clutch

    Hydraulically operating with assistance

    9. Brake

    Disc (front) & Disc (rear)

    10. Tire

    12.00R20, standard patterned tires

    11. Cabin

    HW76 standard cabin, mechanical driver seat, ZF power steering, 1 sleeper

    Optional for: air conditioner, air seats, tires, cabin electronical shifting

    12. Weight

    Chassis kerb mass: 14500; GVM: 50000 (kg);

    13. Dimension

    8550 x 2350 x 3170 (mm)

    14. Performance

    75 km/h (Maximum), 40~55 km/h (economical speed)

    15. Equipment

    No ABS; 400L steel tank

    Superstructure

    Type

    Rectangular box

    1

    Dimension

    5600 x 2300 x 1500 (mm)

    20cbm (modifiable)

    Technique

    Material: Q345

    Side 10mm; Bottom: 12mm

    Side 12mm; Bottom: 14mm

    Labor Situation

    Sand, earth work, construction muck, stone





The product is constantly improving and the configuration parameters are constantly updated. We reserve the right to change the design and parameters without informing the user; The configuration and appearance of the product shall be based on the actual product.
