Car Carrier Semi Trailer

Double layer car carrier trailer carbon steel 2- axles Customize design, used for long distance or short distance car transportation. Double layer designed, it can load 12units car. We can design it in different structure and height,

PRODUCT MANUAL

Overview

Quick Details
Use: Truck Trailer Type: Semi-Trailer Material: Steel
Certification: ISO9100
Size:
16150*3000*4200mm
OEM No.:
car carrier semi trailer
Max Payload: 30000KG Place of Origin: Hubei, China (Mainland) Brand Name:
SINOTRUK HUAWIN
Model Number: / Product name: Long Distance Hydraulic System Carrier Car Transporter Trailer Axle: 2 Axles
Tire: 9.00R20 with one spare tire Suspension: Leaf Spring Suspension

Supply Ability
Supply Ability: 200 Unit/Units per Month
Packaging & Delivery
Packaging Details: 2 units in one 40HQ container
Port: China Main Port
Lead Time :30 Days after Deposit

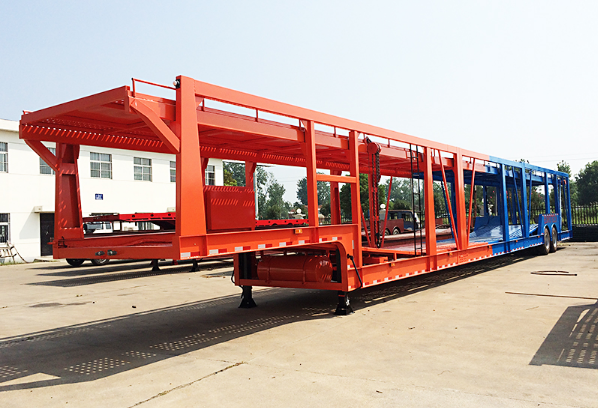

Long Distance Hydraulic System Carrier Car Transporter Trailer

Product Description
Double layer car carrier trailer carbon steel 2- axles Customize design, used for long distance or short distance car transportation. Double layer designed, it can load 12units car. We can design it in different structure and height, suitable for different numbers of loading, and different type of cars. There is hydraulic system to control the height of second layer. The ramp on rear side is for easy loading cars.
The advantage of SINOTRUK Huawin car carrier : Customize design, less weight, reliable structure, suitable for different car brands.
SINOTRUK Huawin is China famous special purpose vehicle manufacturer, located in Suizhou of Hubei province, China. It belongs to China National Heavy Duty Truck Group, has more than 800 workers to work on different types of special purpose vehicle. We have professional engineer team to make customized and humanization design for you.

Specification
Product Name Long Distance Hydraulic System Carrier Car Transporter Trailer
DIMENSIONS
Overall Length 16150mm
Overall Width 3000mm
Overall Height 4200mm
Payload 6,8,10 or 24 cars
SPECIFICATIONS
Main Construction Overall skeletal structure, Hydraulic lifting double-deck, Telescope rear ladder
I Beam &Chassis Overall loading chassis; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes.
Axle 2 axles
  FUWA 13 ton
Suspension German design mechanical suspension
Hydraulic 4 sets Hydraulic Cylinder
Leaf Spring 8-piece leaf spring.
King Pin JOST brand 2” Bolt-in King Pin
Landing Gear JOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim 7.0-20 steel wheel rim
Tire 9.00R20 with one spare tire
Spare Tire One sets of spare tire
Braking System WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories One standard tool box



Batch export of vehicles


Ocean Shipping

IN NUDEChina main port
