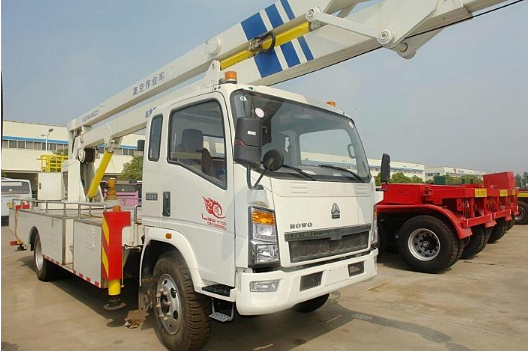

SINOTRUK HOWO Aerial Working Truck-18m

Product Description

(1) HOWO 4x2 Aerial Working Truck

(2) 4x2 Driving model

(3) Horse Power:116HP

(4) Euro II emission

(5) 300L Fuel tank

(6) Max working high:18m

Specification

Model	Manufacturer
Working Platform
Max. platform capacity	230 Kg (2 persons)
Internal size of platform	1100x600x1100 mm
Max. Working Height	18 m
Max platform height	15.2 m
Max. Working radius	7.7 m
Hook
Max lifting capacity	1000 Kg
Max Lifting height	8.63 m
Working Boom
Max. Raising angle of upper boom	70°
Max. Raising angle of lower boom	70°
Max. Raising angle of jib	90°
Boom rack ration angle	360°
Outrigger
Vertical span	3200 mm
Horizontal span	3600 mm

Chassis

Cabin	2080 Standard cab, with two seats
Wheelbase	3360 mm
Overall dimensions(LxWxH)	642219902995mm
Tare Weight	5450kg
Engine	YUNNEI , Euro II emission,116 HP
Clutch	Reinforced diaphragm clutch, diameter 430mm
Gear box	WLY6T46, 6 forwards & 1reverse
Breaks	Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Steering Gear	power steering, hydraulic steering with power assistance
Tire	8.25R16 All steel radial tire, 1pc including 1 spare tire

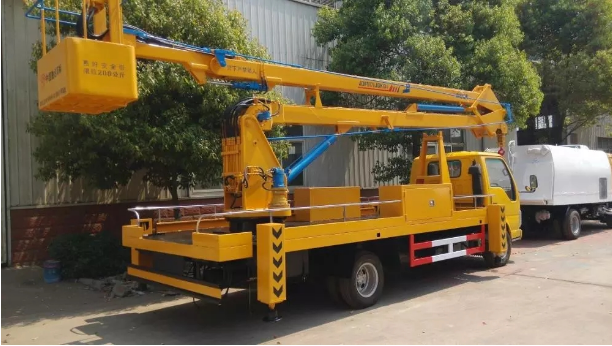

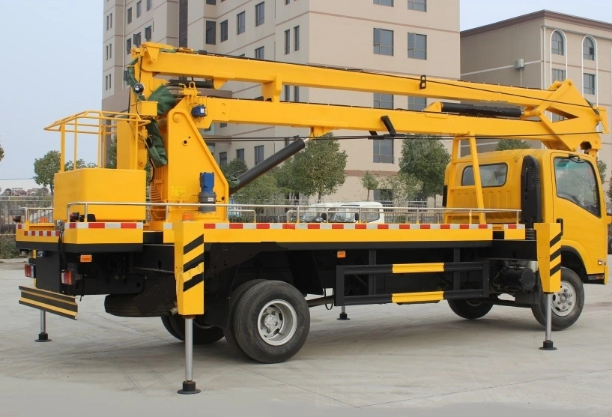

Picture Shows

Advantages

Durable SINOTRUK chassis, enjoy highly reputation in the world.
Electro-hydraulic proportional control, stepless throttle
Control box at both turret and platform
Imported key components, higher reliability, excellent property and long life span.
Large outrigger span, outrigger can be operate individually
Emergency descent power, Safety interlock

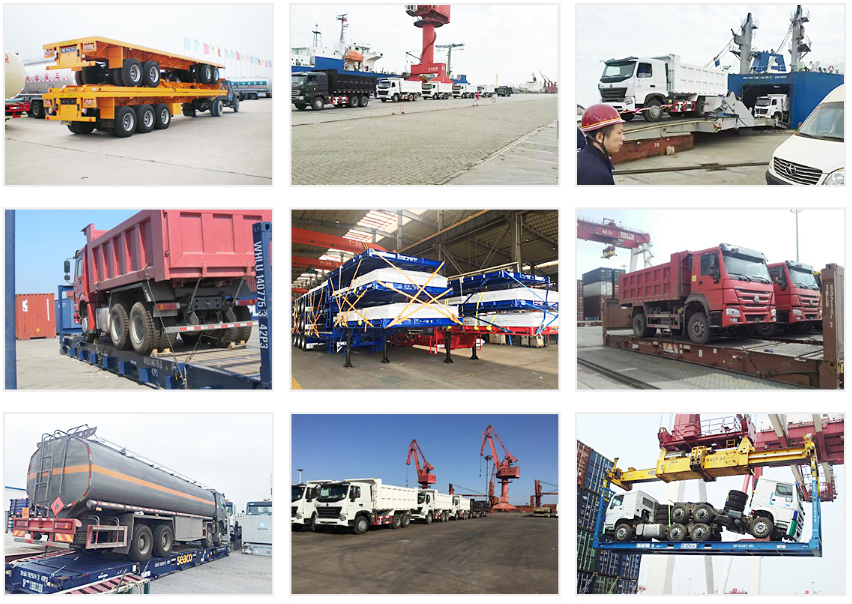

Batch export of vehicles

Ocean Shipping

IN NUDEChina main port
