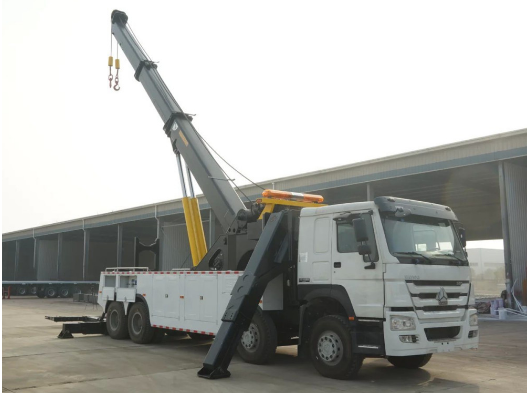

SINOTRUK 8X4 Heavy Duty Rotator Wrecker Truck

Our 8X4 Heavy Duty Rotator Wrecker Truck is designed for extreme recovery operations.Its outrigger system provides maximum stability for a working radius that means you can get into position easier and recover vehicles in even the most challenging conditions

PRODUCT MANUAL

SINOTRUK 8X4 Heavy Duty Rotator Wrecker Truck


Our 8X4 Heavy Duty Rotator Wrecker Truck is designed for extreme recovery operations.Its outrigger system provides maximum stability for a working radius that means you can get into position easier and recover vehicles in even the most challenging conditions. The high quality steel gives the rotator boom superior strength for handling the most demanding jobs efficiently and reliably.



Features

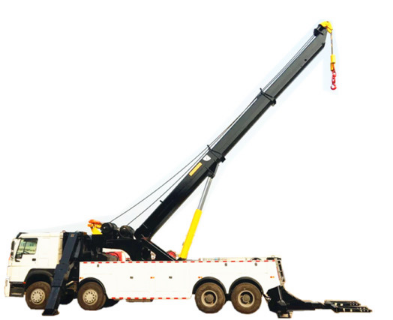

3-Section High-Strength Hydraulic Boom

Max Lifting Capacity: 30T

Max Boom Extension: 11200mm

Max Working Height: 12000mm

Wrecker Boom Winches: Dual 150KN

Boom Rotation: 360˚ Continuous

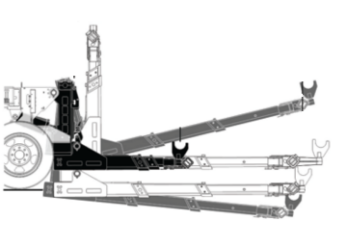

Under lifting

3-Section High-Strength Hydraulic Boom

Retracted Lift Capacity & Reach: 16T/1500mm

Extended Lift Capacity & Reach: 7000T/2500mm

Pivoting angle: -10 to +85 degree

Specification




Cabin

HOWO 76 Standard Cab with one bed, 70° hydraulically tillable to the front as  attached photo for ref.

Overall dimensions

11210×2500×3150mm

Chassis

ZZ1317N4667

Wheelbase(mm)

1950+4600+1350mm

Engine

Brand

SINOTRUK

Model

WD615.47

Type

4-stroke direct injection ,  6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse PowerHP)

371HP

Emission standard

Euro II

Gearbox

HW19710  10 forward & 2reverse Manual

Steering Gear

ZF8118, hydraulic steering with power assistance

Driving axle

HC16speed ratio 4.8

Front axle

HF9 drum-type

Max. driving speed (km/h)

75

Tyre type

12.00 R20

Tyre qty

13 Including One Spare Tyre

Fuel Tanker VolumeL

400
