SINOTRUK HOWO 6X4 Dump Truck Middle Lifting

Engine : WD615.47, 371HP Chassis model : ZZ3257N3847 Capacity : 25-30T


Supply Ability

Supply Ability: 300 Unit/Units per Month
Packaging & Delivery
Packaging Details: naked packing,shipment by roro or bulk vessel
Port: main port in China
Lead Time:
Quantity(Units) 1 - 100 >100
Est. Time(day) 35 To be negotiated

Model ZZ3257N3847A
Drive Type 6×4
Engine WD615.47 , 371HP( Euro II)
6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine
Displacement : 9.726L
Cabin HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons*2
Steering ZF8118 hydraulic steering with power assistance.(ZF8098 for RHD)
Clutch Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance
Rim/ Tire 12R22.5/11.00R20/12.00R20/13R22.5/12.00R24
Wheel base 3800+1350(mm)
Overall dimension 8475×2496×3450(mm)
Cargo body

5400×2300×1500(mm),Bottom:8mm, Side:6mm

The curb weight 12500(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.

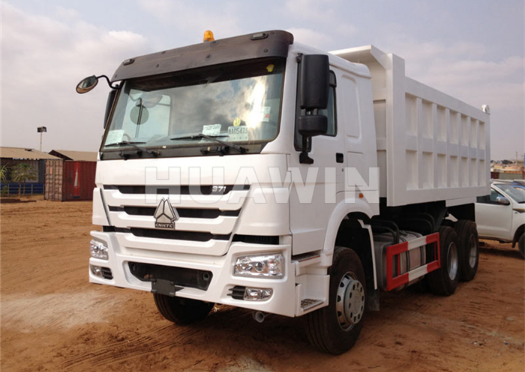

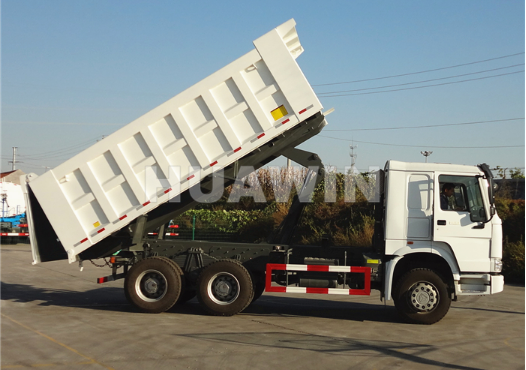

Picture Shows


Competitive Advantage:
zz1)severall kinds of cargo body structure , make it light weight , high rigidity , high loading capacity.
2)adopt the high strength steel, make it has a long service life.
3)The imported hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
4)excellant apperance of cabin, safety, reliable.
5)lower fuel consumption.
6) strong enough engine.
7)with all kinds of truck model, which can fulfil your requirements.
8)the key parts adopt the world's top technology products.
9)based on strong technical support and top level technology make the trucks with high quality and more reliable.
10)competive price, cost-effective.
11)quick and efficient spare parts supply bring you more convenient.
12)fast delivery time, we can arange production according to your needs exactly and quickly.

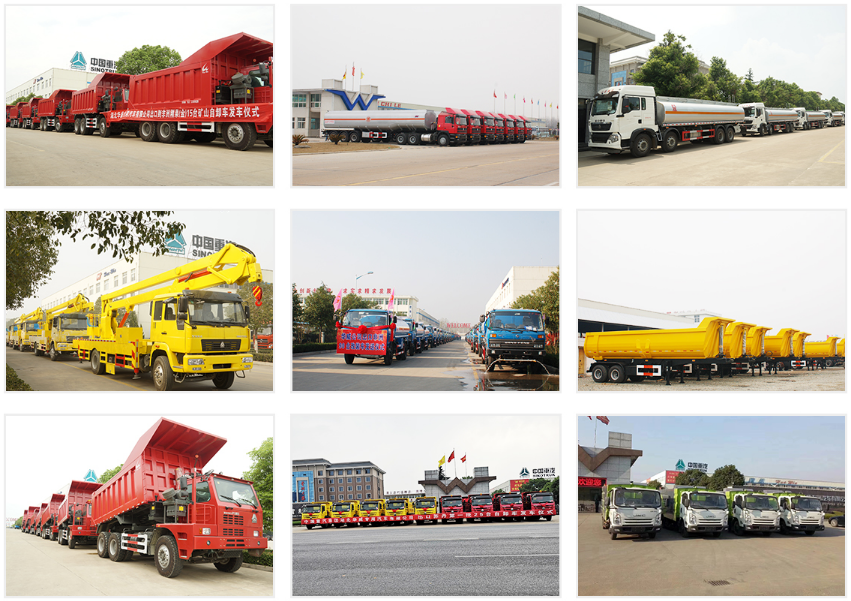

Batch export of vehicles

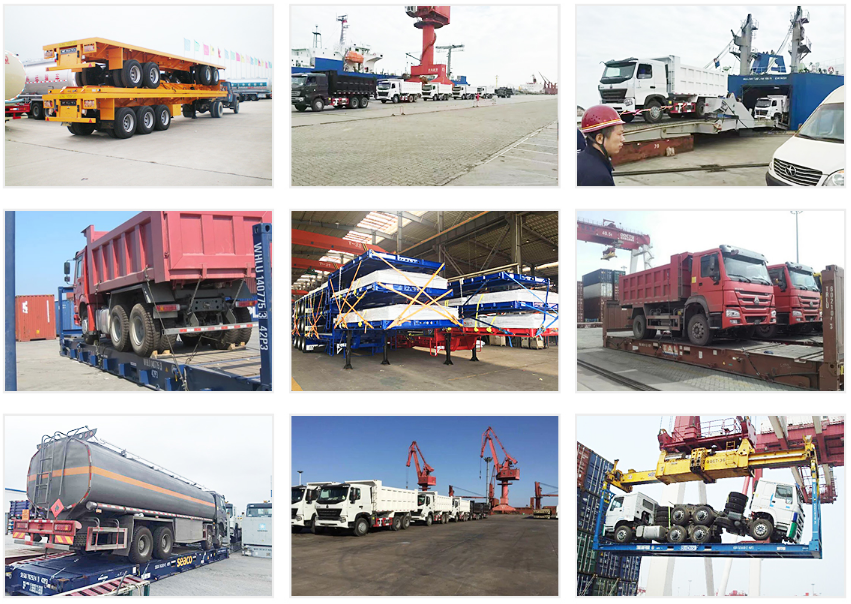

Ocean Shipping
