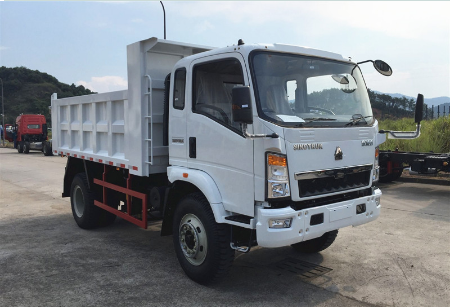

HOWO 4X2 Dump Truck

Engine : 129hp Chassis model : ZZ3047E3415D143 Capacity : 5T

PRODUCT MANUAL

SINOTRUK HOWO Light Duty Dump truck

Vehicle Overview

Make

Sinotruk Howo

Vehicle model

ZZ3047E3415D143

Vehicle type

Dump truck (tipper truck)

Manufacturer

Sinotruk Jinan Commercial Vehicle Co., Ltd.

Country

China

Manufacturer's location

Jinan, Shandong Province, China.

Vehicle chassis

ZZ3047E3415D143

#

Engine Model

Engine Displacement

Engine Power

Engine Manufacturer

1

YN38CRD1

3760 cc

95 kW (129 hp)

Kunming Yunnei Power Co., Ltd.



General Engine Specifications

Fuel

diesel fuel

Environmental standards compliance

Euro IV

Overall Dimensions of the Chinese dump truck

Overall length (mm)

5995

Overall width (mm)

2250

Overall height (mm)

2450

Cargo Body Dimensions

Cargo body length (mm)

4150/3850

Cargo body width (mm)

500/800

Cargo body height (mm)

2050

Weights

Capacity (kg)

4995

Curb weight of the Chinese dump truck (kg)

2600

Axle load distribution (kg)

1750/2540

Wheel Base and Track

Wheelbase (mm)

3360

Front track (mm)

1780, 1805

Rear track (mm)

1605

Front and Rear Overhang

Front overhang (mm)

1180

Rear overhang (mm)

1455

Angle of Approach and Departure

Angle of approach (deg.)

20

Angle of departure (deg.)

18

Tires and Wheels

Number of axles

2

Number of tires

6+1

Tires dimension

8.25R16

Other Specifications

Max. speed

90

ABS

have

Cab seating capacity

3

Leaf springs

11 / 9+7
