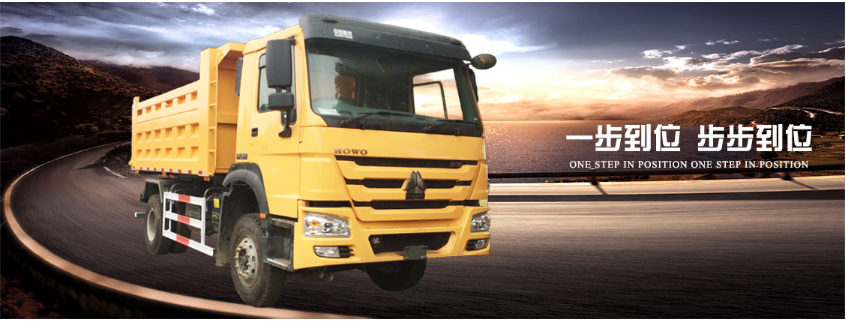

HOWO 4X2 Dump Truck

Engine : WD615, 266HP/290HP Chassis model : ZZ3167M3811 Capacity : 20T

PRODUCT MANUAL

Overview

Quick Details
Drive Wheel: 4x2 Capacity (Load): 11 - 20t Horsepower: 251 - 350hp
Condition: New Transmission Type: Manual Emission Standard: Euro 2
Fuel Type: Diesel Engine Capacity: > 8L Gross Vehicle Weight: 16
Place of Origin: Hubei, China (Mainland) Brand Name: SINOTRUK Dimensions (L x W x H) (mm): 7500x2500x3400mm
Engine power: 290HP Displacement: 9.726L Wheels number: 6 wheels
Transmission: HW19710 Front axle loading capacity: 9000kg Drive axles loading capacity: 16000kg
Type: 12R22.5 Spare tyre: with one spare tyre cargo body size: 4200x2300x1500mm
Color: Buyer's Request Lifting system: Middle lifting system

Supply Ability
Supply Ability: 600 Unit/Units per Month
Packaging & Delivery
Packaging Details: naked packing,shipment by roro or bulk vessel
Port: main port in China
Lead Time:
Quantity(Units) 1 - 20 >20
Est. Time(day) 35 To be negotiated


Specification
Model ZZ3167M3811
Drive Type 4×2
Engine WD615.87 ,290HP( Euro II)
6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine
Displacement : 9.726L
Cabin HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons*1
Steering ZF8118 hydraulic steering with power assistance.(ZF8098 for RHD)
Clutch Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance
Rim/ Tire 12R22.5/11.00R20/12.00R20/13R22.5
Wheel base 3800(mm)
Overall dimension 7500×2496×3450(mm)
Cargo body 4200×2300×1500(mm),Bottom:8mm, Side:6mm
The curb weight 11200(Kg)
Gross weight 16000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.


Picture Shows






Competitive Advantage:
zz1)severall kinds of cargo body structure , make it light weight , high rigidity , high loading capacity.
2)adopt the high strength steel, make it has a long service life.
3)The imported hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
4)excellant apperance of cabin, safety, reliable.
5)lower fuel consumption.
6) strong enough engine.
7)with all kinds of truck model, which can fulfil your requirements.
8)the key parts adopt the world's top technology products.
9)based on strong technical support and top level technology make the trucks with high quality and more reliable.
10)competive price, cost-effective.
11)quick and efficient spare parts supply bring you more convenient.
12)fast delivery time, we can arange production according to your needs exactly and quickly.
