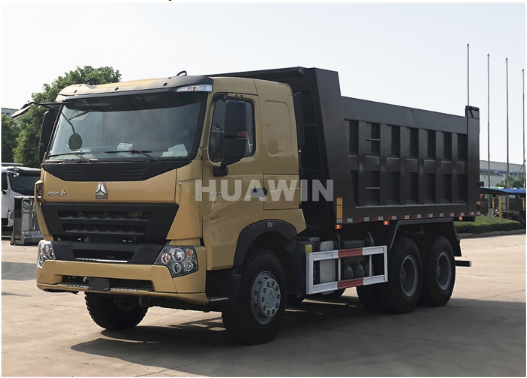

HOWO A7 6X4 Dump Truck

Engine : WD615.47, 371HP Chassis model : ZZ3257N3647P1 Capacity : 35T

PRODUCT MANUAL

HOWO A7 6X4 Dump Truck

Technical Specifications

Vehicle Overview

Make

Sinotruk

Vehicle model

ZZ3257N3647P1

Vehicle type

Dump truck (tipper truck)

Manufacturer

Sinotruk Hubei Huawin Special Vehicle Co., Ltd.

Country

China

Manufacturer's location

Suizhou, Hubei Province, China.

Vehicle chassis

ZZ3257N3647P1

Cabin

A7-W cab

Low floor extended Cab, four-Suspension , air Suspension + shock absorber + transverse stabilizer, single berth, air Suspension driver seat , up/down and front/back adjustable steering wheel, BEHR Euro-style integral a/c heater fan, VDO instrument , CAN bus and electronics control system, double-locking safety belt, electric lifting glass and rearview mirror , three locks combined in one , exterior sun visor , upper /side deflector guide , electronic manual accelerator.

Cab seating capacity

2

#

Engine Model

Engine Displacement

Engine Power

Engine Manufacturer

Emission

1

D10.34

9726 cc

249 kW (340 hp)

China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)

Euro 3/4/5

2

D10.38

9726 cc

276 kW (380 hp)

China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)

Euro 3/4/5

3

D12.42

11596 cc

309 kW (420 hp)

China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)

Euro 3/4/5

1

WD615.69

9726 cc

247 kw (336 hp)

China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)

Euro 2

2

WD615.47

9726 cc

273 kw (371 hp)

China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)

Euro 2

3

D12.42-20

11596cc

309 kw (420hp)

China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)

Euro 2



General Engine Specifications

Fuel

Diesel fuel

4 stroke direct injection diesel engine 6 cylinder in-line with water cooling, turbo-charging & intercooling

Or 6 cylinders inline, supercharge intermediate cooler , water cooling , high pressure and common rail.



Chassis

Clutch

Φ430diaphragm spring clutch, Hydraulic control air assister

Transmission

SINOTRUK HW series 10 gears Transmission, main and auxiliary transmission structure, main transmission with double counter shaft , auxiliary transmission with planetary reduction. Standard is HW19710, HW19710T with synchronizer is optional.

Front Axle

HF9, rated load of 9000kg, disc-type or drum-type;

Rear Drive Axle

HC16 double reduction (speed ratio 4.42; 4.8; 5.73);

Suspension

Front and rear leaf spring suspension +shock absorber +transverse stabilizer

Leaf springs

10 / 12

Steering System

ZF8098 steering gear , ZF steering oil pump , system pressure 18MPa

Braking System

Service brake : dual-circuit air pressure brake : spring storage energy without air ; auxiliary brake; Engine exhaust braking

Electrical System

CAN bus control, voltage : 24V ;generator :2240W starter 7.5kW ; battery : 12V/165Ah, 2 pieces

Tyre

12R22.5; 315/80R22.5 ; 12.00R20; 13R22.5; 12.00R24 optional

Tank Volume  L

300L standard



Overall Dimensions of the Chinese dump truck

Overall length (mm)

8165,8265

Overall width (mm)

2496

Overall height (mm)

3450

Wheel Base and Track

Wheelbase (mm)

3625+1350

Front track (mm)

2022, 2041

Rear track (mm)

1830/1830

Front/rear overhang (mm)

1540/1650,1540/1750

Angle of approach/departure (deg.)

20/27,20/26

Cargo Body Dimensions

Cargo body length (mm)

5200/5400

Cargo body width (mm)

1200-1500

Cargo body height (mm)

2300

Steel thickness of body floor

optional 6, 8, 10,12mm

Steel thickness of body side

optional 4,6,8,10mm

Lifting model

Front lift,

Lifting hydraulic cylinder

China system and HYVA system


The Highlight of Our Dump Truck

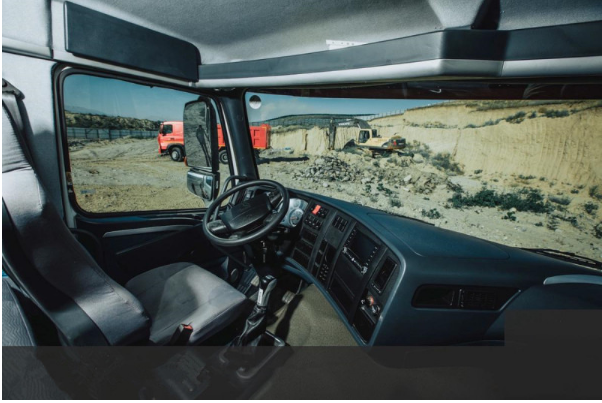

High efficient and comfortable ergonomic spaced cabin

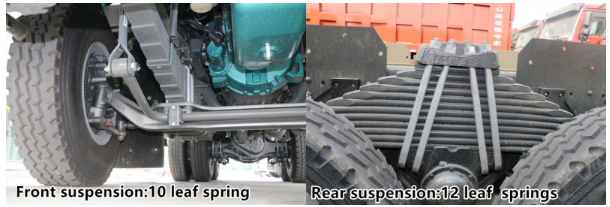

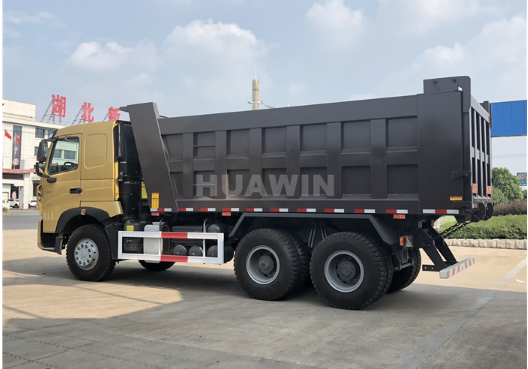

The high reliability suspension


Shippment

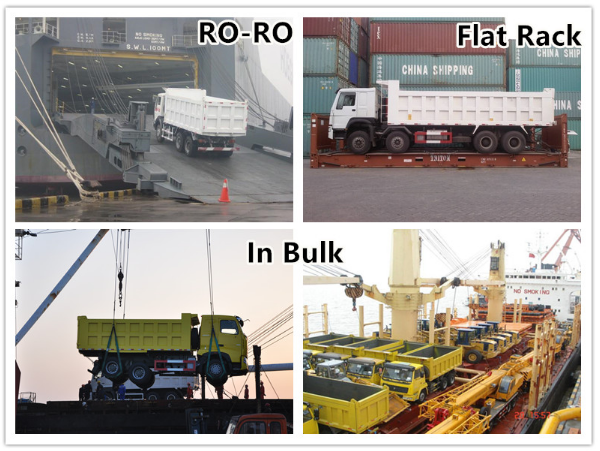

Nude Packing or Waxing. The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. We would be taken measures against moisture, shocks and rust according to the special needs of the commodity.

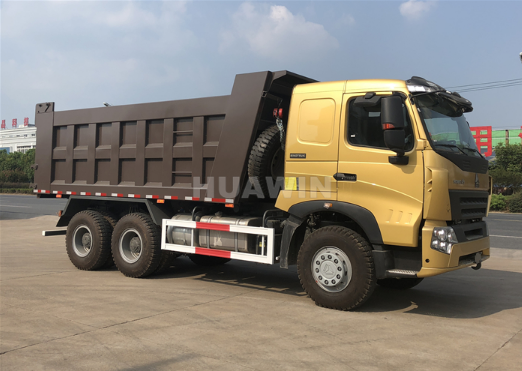

SINOTRUK HOWO A7 6X4 Dump Truck
