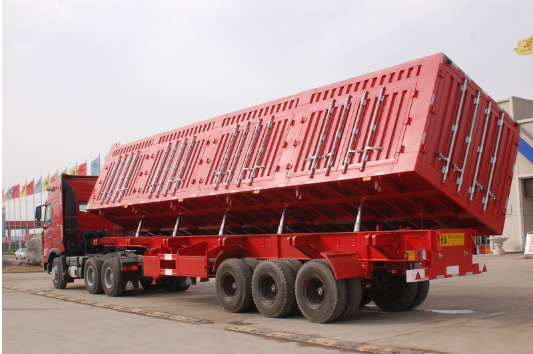

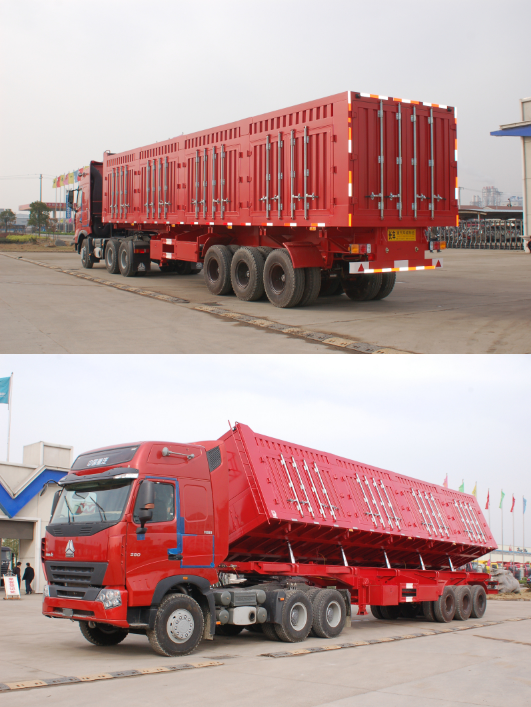

Side Tipper Semi Trailer
PRODUCT MANUAL
Overview
Specification:
|
Weight: |
|
|
Tare Weight |
8000kg-14000kg |
|
Loading Capacity |
50T-100T |
|
Axle Weight Load |
13T-16T |
|
Specification: |
|
|
Axle number |
3/4 |
|
Axle Brand |
Fuwa/BPW/Optional upon choice |
|
Suspension |
Common mechanical |
|
King Pin |
3.5" traction pin |
|
Dimensions (LxWxH) |
12400~18000×2500~3200×1500~2000mm |
|
Thickness of box |
3~8mm |
|
Support legs |
28T |
|
Wheel Rim |
8.5-20,9.0-20,8.28-22.5,9.0-22.5 steel wheel rim / optional upon choice |
|
Wheelbase |
7180/6680/6260+1310+1310mm |
|
Steel Spring |
10-13 pieces per axle |
|
Landing Gear |
Manual operating, Heavy duty landing gear (Brand Optional upon choice) |
|
Floor |
5-10 Diamond steel plate |
|
Accessories |
1 Set standard tool box |
|
Light |
Tail lamp with turn signal, brake light & reflector, side lamp etc. |
|
Painting |
1coat of anticorrosive prime, twice coats of final paint |
|
Tire: |
|
|
Tire spec. |
12R22.5 tire/11.00R20/12.00R20 |
|
Number of Tire |
12 or 16 pieces |
|
Spare Tire Carriers |
2 pieces |
|
Frame: (specs. and materials) |
|
|
Main beam |
The height of the beam is500-550mm; Upper plate:14-18mm;Down plate is 16-20mm;Middle plate is 8-12mm. |
