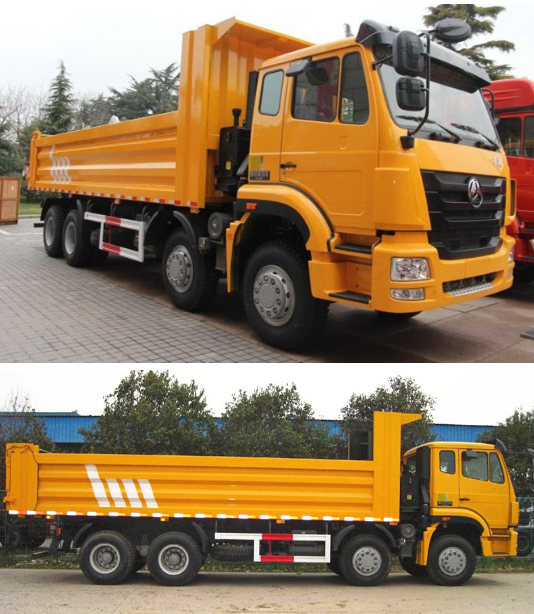

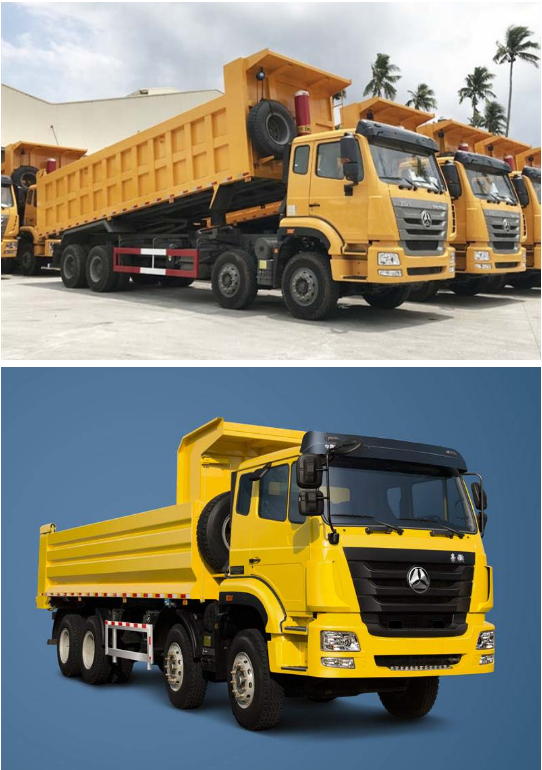

SINOTRUK HOHAN 8X4 Dump Truck
Technical Specifications of HOHAN 8x4 Dump Truck
|
Chassis Make |
Sinotruk Hohan |
||||
|
Vehicle type |
Dump truck (tipper truck) |
||||
|
Manufacturer |
Sinotruk Hubei Huawin Special Vehicle Co., Ltd. |
||||
|
Country |
China |
||||
|
Manufacturer's location |
Suizhou, Hubei Province, China. |
||||
|
Engine |
|||||
|
# |
Model |
Displacement |
Power |
Engine Manufacturer |
|
|
1 |
D10.31 |
9726ml |
228 kW (310 hp) |
China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) |
|
|
2 |
D10.34 |
9726ml |
249 kW (339 hp) |
China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) |
|
|
3 |
D10.38 |
9726ml |
276 kW (376 hp) |
China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) |
|
|
4 |
WD615.69 |
9726ml |
247 kW (336 hp) |
China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) |
|
|
5 |
WD615.47 |
9726ml |
274 kW (371 hp) |
China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) |
|
|
General Engine Specifications |
|||||
|
Fuel |
Diesel fuel |
||||
|
Emission standards |
Euro 2/3/4/5 |
||||
|
Chassis Specifications |
|||||
|
Cabin |
Model: H16; Germany BENZ Technology, extended cab with one sleeper (berth), air-conditioner, damping comfortable seat, dash board with LCD, MP3, safety belts, curtain, electrical window regulator, adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber devices etc. |
||||
|
Cab seating capacity |
2 |
||||
|
Clutch |
Φ430diaphragm spring clutch, Hydraulic control air assister |
||||
|
Transmission |
SINOTRUK HW series 10 gears Transmission, main and auxiliary transmission structure, main transmission with double counter shaft , auxiliary transmission with planetary reduction. Standard is HW19710, HW19710T with synchronizer is optional. |
||||
|
Front Axle |
HF9, rated load of 9t, disc-type or drum-type; |
||||
|
Rear Drive Axle |
HC16 double reduction (speed ratio 4.42;4.8; 5.73); |
||||
|
Suspension |
Front and rear leaf spring suspension +shock absorber +transverse stabilizer |
||||
|
Leaf springs |
4/4/5,11/11/-,11/11/12 |
||||
|
Steering System |
ZF8098 steering gear , ZF steering oil pump , system pressure 18MPa |
||||
|
Braking System |
Service brake : dual-circuit air pressure brake : spring storage energy without air ;auxiliary brake Engine exhaust braking. |
||||
|
Electrical System |
Battery: 2x12V,165Ah; Operating voltage 24V,negative grounded; Alternator:28V,1500W Starter: 24V, 7.5KW; Cigar lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
||||
|
Tyre |
12.00R20 ; 11.00R20, 315/80r22.5 are optional |
||||
|
Tank Volume L |
300L standard |
||||
|
Dump cargo box Specifications |
|||||
|
Vehicle Model |
ZZ3315N3566 |
ZZ3315N3866 |
ZZ3315N4066 |
||
|
Driving type |
6x4 LHD/RHD |
||||
|
Wheel Base |
1800+3500+1350 |
1800+3800+1350 |
1800+4000+1350 |
||
|
Recommend Cargo box dimension |
7.2/7.3*2.3*1.5m |
7.6/7.8*2.3*1.5m |
7.8/8.0*2.3*1.5m |
||
|
Overall size |
9960x2496x3450 |
10410/x2496x3490 |
10610x2496x3490 |
||
|
Tall Mass(vehicle+cargo) |
50~70Ton |
||||
|
Carry distance |
Short Distance |
||||
|
Economic speed |
36~54Km/h |
||||
Detail
Shippment
Nude Packing or Waxing. The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. We would be taken measures against moisture, shocks and rust according to the special needs of the commodity.
