PRODUCT MANUAL
Overview
| Quick Details | |||||
| Use: | Other Trailers | OEM No.: | Requirement | Max Payload: | 40T |
| Size: | 11500 x 2500 x 3400mm | Place of Origin: | Hubei, China (Mainland) |
|
HW |
| Model Number: | Semi-Trailer | Tare weight: | 9700 |
|
19-22cbm |
| Chassis: | heavy duty style |
|
FUWA/BPW-13T | Suspension: | Air suspension/mechanical |
| Lifting axle: | Front axle lifting is optional | Brakes: | Drum / ABS | Kingpin: | JOST bolt in king pin |
| Landing Gear: | JOST C200 | Tire: | 385/65R22.5 or 315/80R22.5 | ||
Supply Ability
Supply Ability: 300 Unit/Units per Month
Packaging & Delivery
Packaging Details: We transport the vehicle in nude ,or by roro vessel,or in wax by bulk vessel or by container if possible.
Packaging Details: We transport the vehicle in nude ,or by roro vessel,or in wax by bulk vessel or by container if possible.
Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
Port: China main port
Lead Time :30 days
Port: China main port
Lead Time :30 days

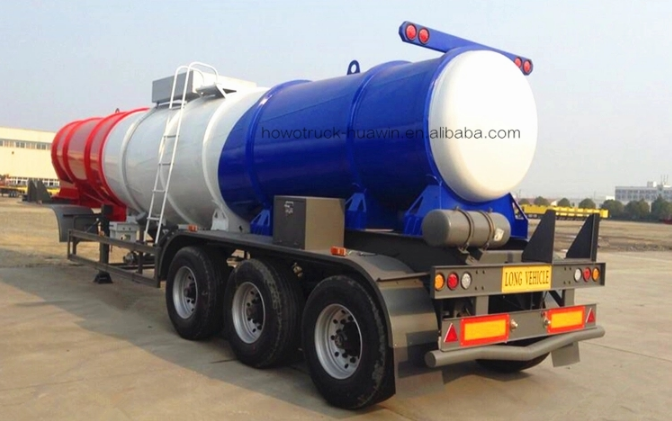

SINOTRUK Huawin V shape sulfuric acid transport carbon steel tank semi trailer
Product Description
The Acid tanker trailer is designed to store and for transport acid or liquid additives, etc. For oilfield and mining use. The fill & discharge lines are located on the bottom for easy access. Manholes are located at top for easy access. The tank trailer is equipped with ladders, walkways, handrails, discharge manifold ,etc.
Specification
- ABS and EBS brake system
- JOST parking leg and king pin
- BPW, FUWA Axles
- Air bag Suspension
- Carbon Steel
- Lifting Front axle is optional
- Single tire
- Light weight and beautiful

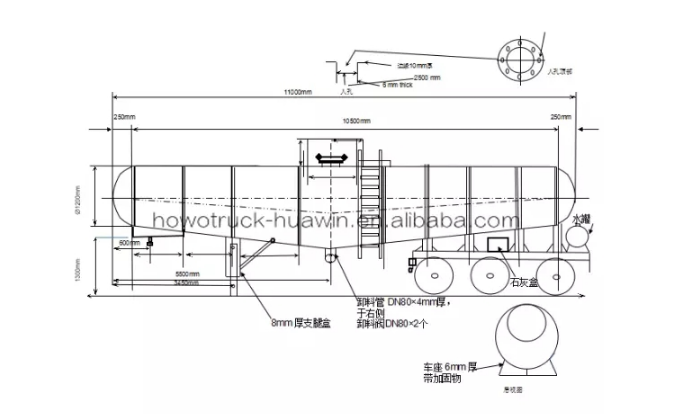

| Tank Body | |
| Shape | V type, single Compartment |
| Dimension | 11500x2500x3400mm |
| Tare weight | About 8800kgs |
| Total Volume | 19-22m³ |
| Tanker Body Material | 6mm Q235 carbon steel |
| End Plate | 6mm Q235 carbon steel |
| Baffle | 4mm Q235 carbon steel |
| Manhole Cover | Carbon steel. Diameter: 500mm (stainless steel optional) |
| Discharging Valve | Diameter is 100mm |
| Cat Walk | With(Common model or special design) |
| Chassis | |
| Main Beams | Welding Design, Q345 carbon steel |
| Axle | 3 axles, 13Ton; FUWA/BPW brand |
| Landing Gear | JOST 28T |
| King Pin | JOST 2.00 inch bolt-in king pin (3.5inch optional) |
| Suspension | KOM MAN Air bag Suspension |
| Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two 45L air tanks |
| Rim | 11.75-22.5 |
| Tire | 385/65R22.5, 7 pcs (one spare tire) |
| ABS | Optional |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paints |
| Shipping Terms | By container or RORO |
| Other parts |
One water tank, one Lime box, one tool box |

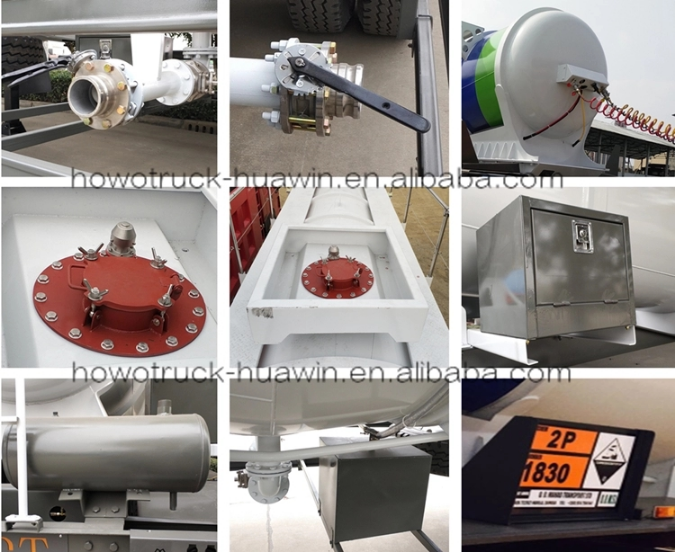

Picture Shows

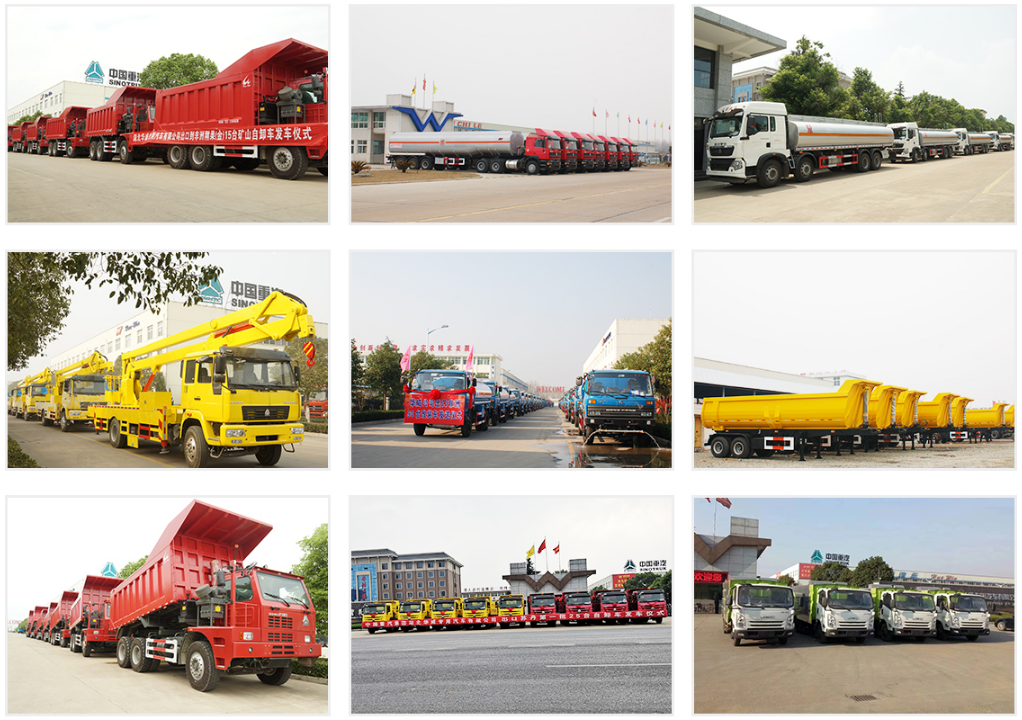

Batch export of vehicles

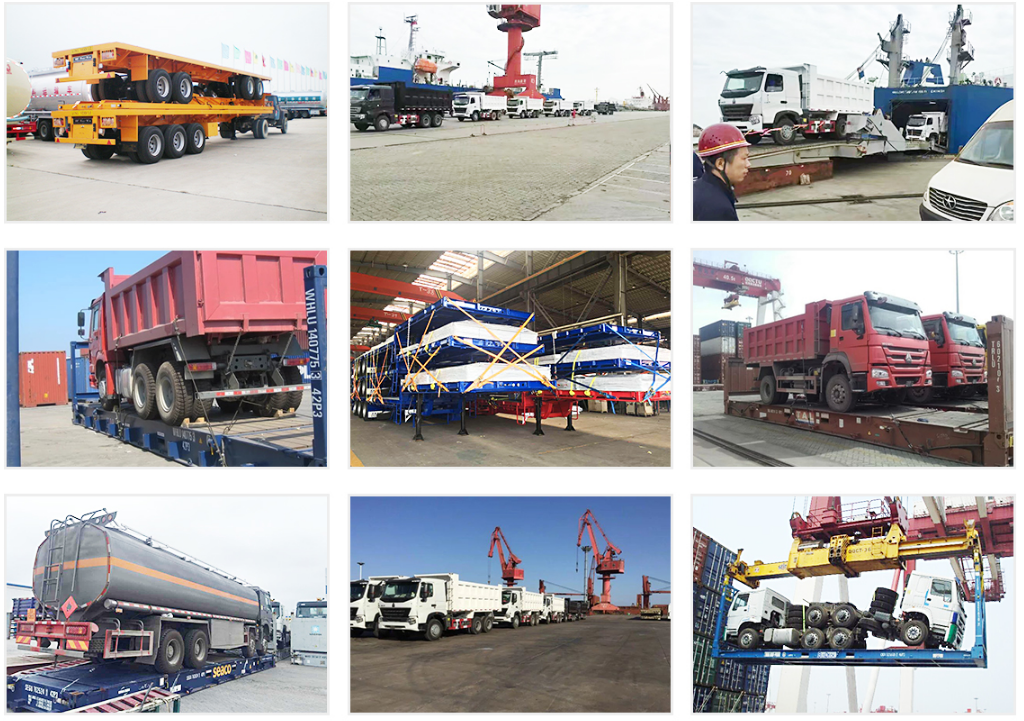

Ocean Shipping
