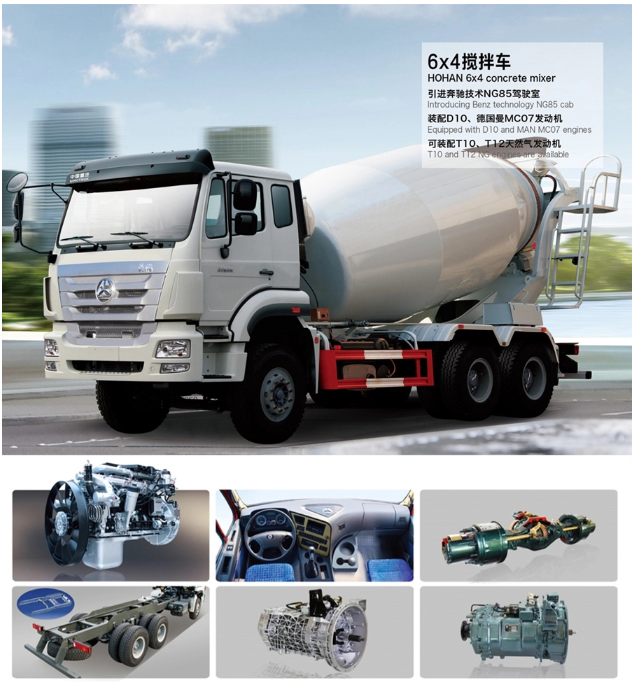

SINOTRUK HOHAN Mixer Truck

Engine : 290~380HP, Euro2~Euro5 Chassis model : 6X4/8X4 Mixing capacity : 8-14 cubic meter/CBM

Service & Support

PRODUCT MANUAL

Model		6X4	6X4	8X4
Engine	model	MC07.34/340HP/Euro4	D10.38-40/380HP/Eruo4	D10.38-40/380HP/Euro4
		WD615.69, 336HP Euro2	WD615.47/371/Euro2	WD615.47/371/Euro2
	Displacement	6.87L	9.726L	9.726L

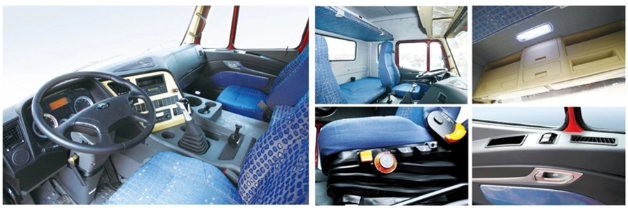

Cabin		H16 single sleeper, equip with air-condition, safety belt, electric lifting cabin, wind deflector.
Clutch		Φ430 pull-type diaphragm clutch
Transmission		HW13710/ HW19710/HW19712
		12/10 front and 2 reverse, manual gearbox
		SINOTRUK HW series Transmission, main and auxiliary transmission structure, main transmission with double counter shaft, auxiliary transmission with planetary reduction.
Drive Axle		HC16
		SINOTRUK brand Mine with 16ton
		Central reduction and hub reduction, drum brake
Speed ratio		4.42,4.8, 5.73
Front Axle		HF9
		SINOTRUK brand, 9ton,
		drum brake or disc brake
Frame (mm)		300X80x(8+8)/300X80x(8+8+8)
Chassis suspension		Multiple-leaf spring in front and rear
Steering		ZF power steering with hydraulic system
Tyre		11.00R20
Fuel tank		300L
Breaking system		service brake: dual-circuit air pressure brake; parking brake: spring storage energy without air; auxiliary brake: Engine exhaust braking.
Electronic system		voltage:24V;generator:1540W;starter:24V,7.5kw;battery:12V/165Ah,2pieces
Mixer	volume	8~12cbm		12~14cbm
	Thickness	6mm		6mm
	Other	ETON pump,
		ETON motor,
		Italy Bonfiglioli speed reducer. Speed of mixing barrel:0-16r/min
		Mixing obliquity:11°
		Capacity of water tank:380L
		Residual rate of discharge:<0.5%
		Max. dimension of hopper:980mm
