6X4 Water Truck

Engine : WD615 Chassis model : ZZ1257M4647 Volume : 15-25 CBM

Request a Quote

Service & Support

PRODUCT MANUAL

Sinotruk Howo 6x4 Water Tank Truck

Product Description

Sinotruk Howo Water Tank Truck for Landscape Engineering or Mining area. Our company production of Water Tank Truck have the character of high pressure, spraying range wide, good flushing effect and so on.

Specification

Chassis Model	ZZ1257N4641W
Driving Type	LHD (RHD is optional)
Cabin	HW76, with one sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber.
Engine	Make: SINOTRUK Diesel 4-stroke direct injection diesel engine Engine model: WD615.69, Euro 2, 336 HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L
Transmission	HW19710, 10F & 2R with PTO Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering	ZF power steering, modol ZF8118, hydraulic steering with power assitance
Front Axle	HF9,1x9000 KGS Steering with double T-cross section beam
Rear Axle	HC16, 2x16000 KGS Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles. Ratio:4.42/4.8/5.73
Propeller Shaft	Double universal joint propeller shaft with gear-shaped coupling flange
Chassis	Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer
Brake	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake
Electrics	Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tyres	315/80R22.5, tubeless tires with one spare tire Optional: 295/80R22.5, tubeless tires with one spare tire 12R22.5, tubeless tires with one spare tire 12.00R20, radial tires with one spare tire
Fuel Tank	400L
Tank Body	Volume 15-25CBM according to need Tank material thickness Side 5mm, Cover 6mm; With front and rear sprinkler system; rear platform; rear water canon With water pump With one or two manholes

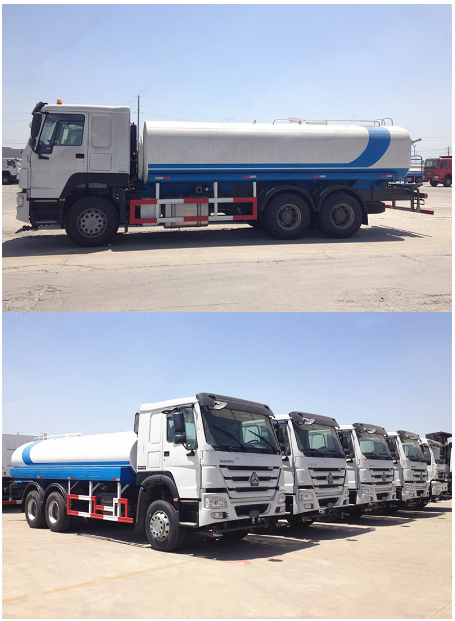

Picture Shows

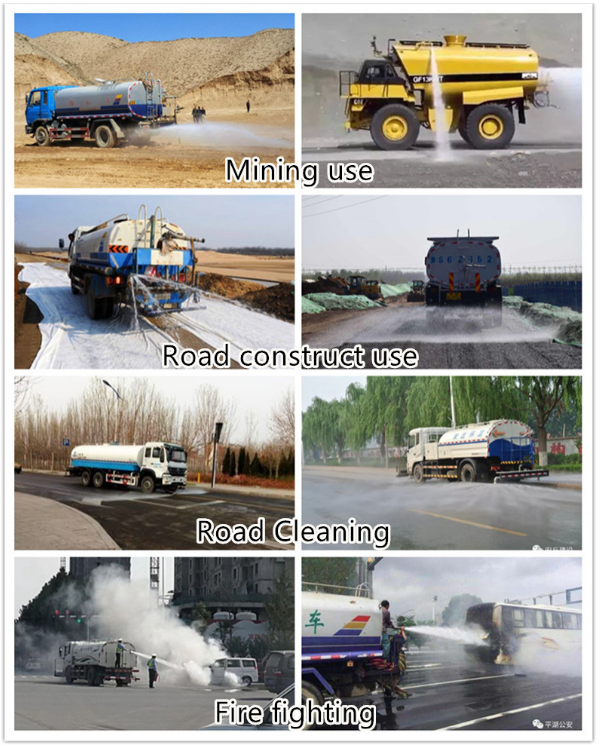

Applications

The Water tank truck is mainly used for construction of mines and other enterprises, road flushing and dust covering in large-medium-scale cities.

Competitive Advantage:

1) High pressure, wide range of spraying good flushing effect

2) Blunt head universal adjustment, meet the arbitrary Angle and the combination of the flush operation

3) Pneumatic control and manual control system can realize two functions

4) External sandblasting processing of tank, internal anti-corrosion treatment, Outside surface adopts advanced polyurethane paint, beautiful appearance

5) with all kinds of truck model, which can fulfill your requirement

6) the key parts adopt the world's top technology products

7) based on strong technical support and top level technology make the trucks with high quality and more reliable

8) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation, 150 degree tilt up and down. Options small flow pump, spraying reel to wake insecticidal garden trees flowers and plants

9) competitive price, cost-effective

10) quick and efficient spare parts supply bring you more convenient

11) fast delivery time, we can arrange production according to your needs exactly and quickly

12) professional import and export dealing procedure, make customs clearance more high efficiency
