4X2 Water Truck

Engine : WD615 Chassis model : ZZ1167M4611 Volume : 10-15 CBM

PRODUCT MANUAL

Sinotruk Howo 4x2 Water Tank Truck

MgUFtxq0SCGp

Product Description

Sinotruk Howo Water Tank Truck for Landscape Engineering or Mining area. Our company production of Water Tank Truck have the character of high pressure, spraying range wide, good flushing effect and so on.


Specification

SINOTRUK HOWO 4x2 Water Tank Truck – 12 CBM

Chassis Model

ZZ1167M4617

Driving Type

4X2/ 6 wheels

Left Hand Driving

Right Hand Driving

Production Year

2018. New truck.

Cabin

HW70, without sleeper and two seats, with A/C

HW76, with one sleeper and two seats, with A/C

Engine

Make

Make: SINOTRUK

Model

WD615.62, Euro 2, 266 HP

WD615.87, Euro 2, 290 HP

Detail

Diesel 4-stroke direct injection diesel engine 6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Displacement: 9.726 L

Transmission

HW13710, 10F & 2R, with PTO

Ratio:

14.104, 10.648, 7.809, 5.822, 4.315, 3.268, 2.468, 1.81, 1.349, 1.00,

12.33(R1), 2.85(R2)

Steering

ZF power steering, model ZF8098, hydraulic steering with power assistance

Front Axle

HF7, 1x7000 KGS\

Rear Axle

ST16, 1x16000 KGS

Ratio: 4.42/4.8/5.73

Electrics

Operating voltage: 24 V, negative grounded

Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W

Batteries: 2 x 12 V, 165 Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tires

295/80R22.5 tubeless tires with one spare tire.

Fuel Tank

400L

Tank Body

10-15 cubic meters,

Tank material thickness Side 5mm, Cover 6mm;

With front and rear sprinkler system; rear platform; rear water canon

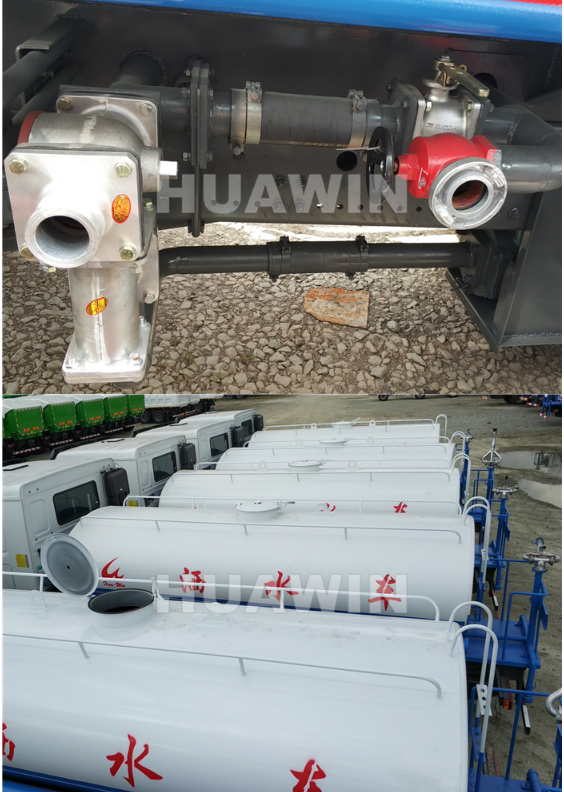

With water pumppump in and out

Overall Dimension

8500*2500*3200 mm

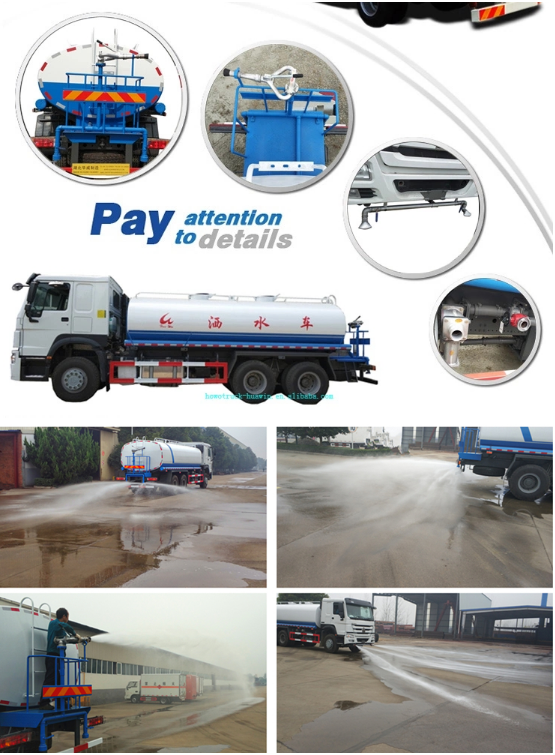

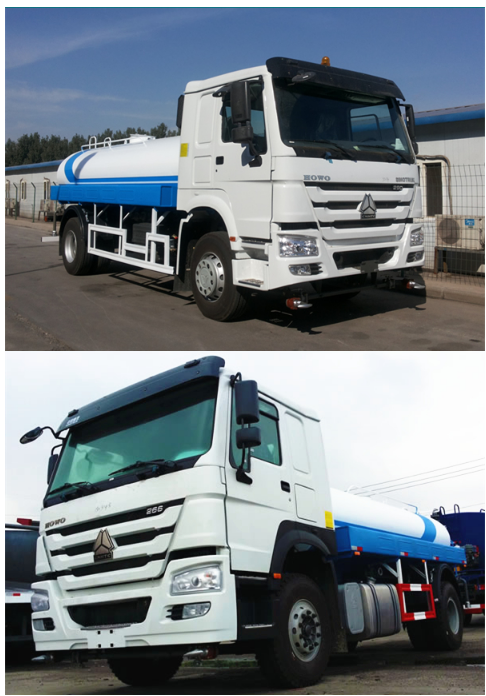

Picture Shows








Applications

The Water tank truck is mainly used for construction of mines and other enterprises, road flushing and dust covering in large-medium-scale cities.










Competitive Advantage:



1) High pressure, wide range of spraying good flushing effect

2) Blunt head universal adjustment, meet the arbitrary Angle and the combination of the flush operation

3) Pneumatic control and manual control system can realize two functions

4) External sandblasting processing of tank, internal anti-corrosion treatment, Outside surface adopts advanced polyurethane paint, beautiful appearance

5) with all kinds of truck model, which can fulfill your requirement

6) the key parts adopt the world's top technology products

7) based on strong technical support and top level technology make the trucks with high quality and more reliable

8) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation, 150 degree tilt up and down. Options small flow pump, spraying reel to wake insecticidal garden trees flowers and plants

9) competitive price, cost-effective

10) quick and efficient spare parts supply bring you more convenient

11) fast delivery time, we can arrange production according to your needs exactly and quickly

12) professional import and export dealing procedure, make customs clearance more high efficiency
