SINOTRUK HOHAN 8X4 Mixer Truck

Engine : 340HP Chassis model : 8X4 Mixing capacity : 10/12CBM

PRODUCT MANUAL

SINOTRUK HOHAN J5G 8X4 MIXER TRUCK

xx

Hohan serise is a new commercial vehicle which is collected the Mercedes Benz technology, Germany Man technology, Steyr technology and Sinotruk advanced technology. The truck uses Mercedes Benz technology cab and Germany man technology chassis.It bases on the environment and user characteristics to optimize the auto body, power transmission, chassis and suspension system,in order to make the truck have lighter weight, lower fuel consumption, higher reliability, more security, and could improve the transport efficiency of the users


Technical Specifications of Hohan 8x4 Mixer Truck

Vehicle Overview

Make

SINOTRUK HUAWIN

Vehicle type

Concrete mixer truck (cement mixer)

Manufacturer

Sinotruk Hubei Huawin Special Vehicle Co., Ltd.
A subsidiary of CNHTC - China National Heavy Duty Truck Group Corporation (Sinotruk).

Country

China

Manufacturer's location

Suizhou, Hubei Province, China.

Vehicle chassis

ZZ1315N3063



#

Model

Displacement

Power

Engine Manufacturer

1

MC07.31

6870 cc

228 kW (310 hp)

China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)

2

MC07.34

6870 cc

248 kW (340 hp)

China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)



General Engine Specifications

Fuel

diesel fuel

Environmental standards

Euro 3/4/5

Overall Dimensions

Overall length (mm)

9800

Overall width (mm)

2496

Overall height (mm)

3850

Weights

Rated capacity (kg)

17250

Curb weight

13750

Gross vehicle weight (kg)

31000

Axle load distribution (kg)

6500/7000/17500  (tandem axle)

Wheel Base and Track

Wheelbase (mm)

1800+3050+1350, 1800+3025+1400

Front track (mm)

1950/1950, 2022/2022

Rear track (mm)

1850/1850

Front and Rear Overhang

Front overhang (mm)

1550

Rear overhang (mm)

2050

Angle of Approach and Departure

Angle of approach (deg.)

20

Angle of departure (deg.)

23.5

Tires and Wheels

Number of axles

4

Number of tires

12

Tires dimension

11R22.5, 12R22.5, 10.00R20, 11.00R20

Leaf springs

4 / 4 / 5, 9 / 9 / -, 9 / 9 / 12, 11 / 11 / -, 11 / 11 / 12

Mixer tank Specifications

Mixing capacity

12 cubic meters

Thickness

4-6mm

Reduction gear

Italian Bonfiglioli

Hydraulic pump

American Eaton

Motor

American Eaton

Feeding speed

≥4m3/min

Discharge speed

≥3m3/min

Discharge residual rate

≤0.8%



 Details and highlight of our Mixer truck

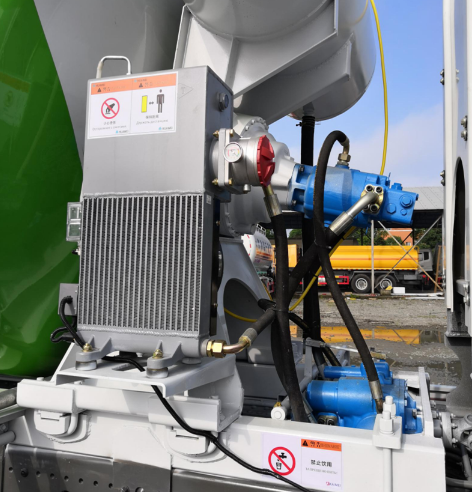

The main components using the world famous brands’ high quality parts to ensure the hydraulic system and reducer a long life service.

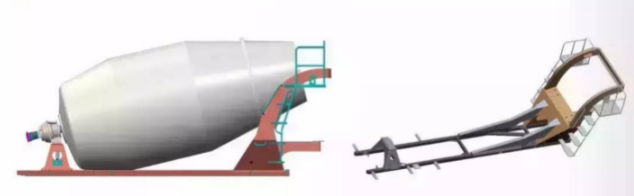

Using the most advanced double logarithmic spiral curve design, make the mixer drum turned more smoothly, improve the  workability of concrete.

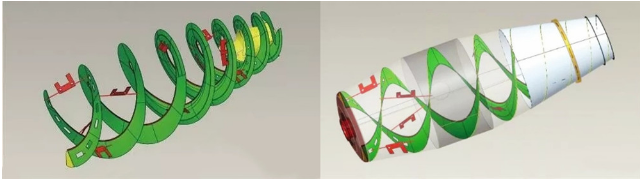

The unique space helical blades improve the mixing efficiency, reducing the loading, discharge and mixing time.



The mixer drum plate and spirals blade using the high strength wear-resisting steel, to extended the service life.

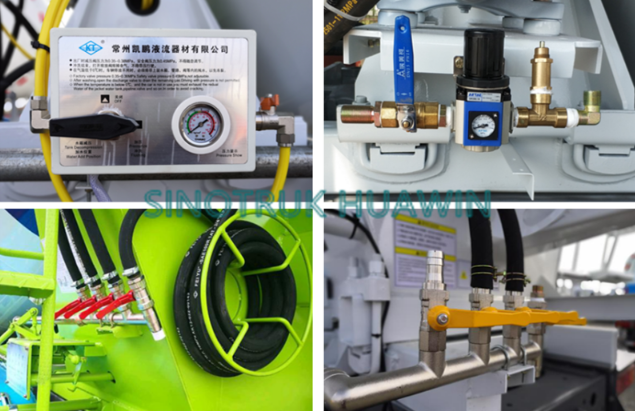

The convenient and high-efficient water supply by air pressure cleans clearly and thoroughly. Adopt the parts of famous brand. The service life of the steel water pipe is five times of common water pipe.

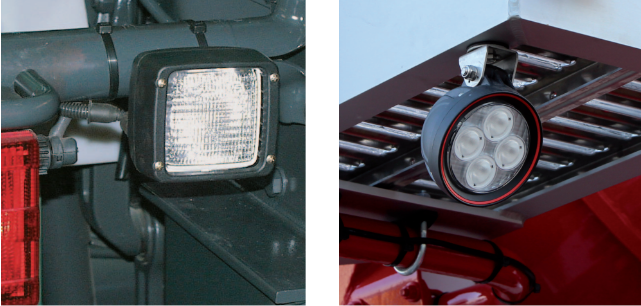

Working searchlight mounted below the ladder platform to illuminate the unloading area.
