16000 - 25000 Liters Sinotruk Howo Water Tank Truck
Product Description
16000 - 25000 Liters Sinotruk Howo Water Tank Truck for Landscape Engineering or Mining area. Our company production of Water Tank Truck have the character of high pressure, spraying range wide, good flushing effect and so on.
Specification
| 16000 - 25000 Liters Sinotruk Howo Water Tank Truck | |
| Chassis Model | ZZ1167M4611W |
| Drive Type | 6×4 |
| Engine | WD615.62, 266HP |
| Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat) |
| Transmission | HW13710(10 forwards & 2 reverses) |
| Front Axle | HF9(1X9 Tons) |
| Driving Axle | ST16(1X16 Tons) |
| Clutch | hydraulically operating with air assistance |
| Rim/ Tire | 11.00R20, Radial tyre |
| Wheel base | 4600(mm) |
| Capacity of tank body | 16-25 CBM |
| Spraying width of travel | 15m |
| Spraying height | more than 30m |
| Water sucking depth | more than 5m |
| Overall dimension | 8250×2500×3200mm |
| The curb weight | 8000(Kg) |
| Gross weight | 16000 kg |
| Max. speed | 95km/h |
| Color | White, red, green, golden and so on. |

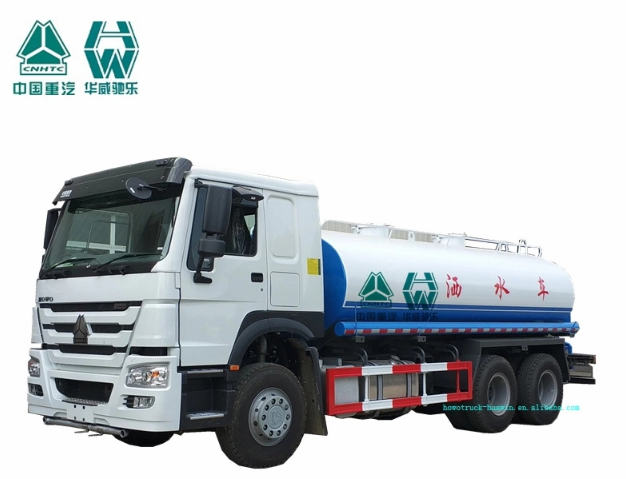

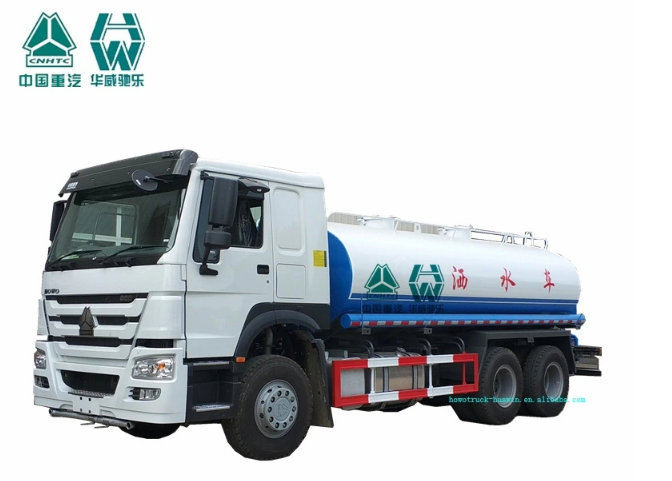

Picture Shows
Applications:
The Water tank truck is mainly used for construction of mines and other enterprises, road flushing and dust covering in large-medium-scale cities.
Competitive Advantage:
1) High pressure, wide range of spraying good flushing effect
2) Blunt head universal adjustment, meet the arbitrary Angle and the combination of the flush operation
3) Pneumatic control and manual control system can realize two functions
4) External sandblasting processing of tank, internal anti-corrosion treatment, Outside surface adopts advanced polyurethane paint, beautiful appearance
5) with all kinds of truck model, which can fulfill your requirement
6) the key parts adopt the world's top technology products
7) based on strong technical support and top level technology make the trucks with high quality and more reliable
8) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation, 150 degree tilt up and down. Options small flow pump, spraying reel to wake insecticidal garden trees flowers and plants
9) competitive price, cost-effective
10) quick and efficient spare parts supply bring you more convenient
11) fast delivery time, we can arrange production according to your needs exactly and quickly
12) professional import and export dealing procedure, make customs clearance more high efficiency
