Sinotruk HOWO 4X2 Tractor Truck

Engine Power : 336HP Wheel Base : 3500mm Loading Capacity : -

PRODUCT MANUAL

SINOTRUK Howo 4x2 336HP Tractor Truck


Specification



SPECIFICATION

Engine

Make: SINOTRUK
Serial: WD615.69 EURO-II

Air inlet type: Turbo-charging and intercooling

Number of cylinders: 6

Fuel type: Diesel

Cylinder type:In-line

Exhaust: 9.726L

Emission standard: EURO-II

Max output: 247kw

Rotating speed at rated: 2200rpm

Max horsepower: 336hp

Max. Torque: 1350N.m

Max torque rotating speed: 1100 to 1600rpm

Lowest consumption: ≤193g/kw.h

Engine type: Water cooling, four stroke, direct injection

Weight: 850kg

Compressing ratio:17:01

Noise:≤98dB

Cylinder bore x route: 126 x 130mm

Air valve: 2

Clutch

Single-plate dry coil-spring clutch, diameter 430mm,
hydraulically operating with air assistance.

Transmission

HW19710CL,  10 forward, 1 reverse

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Front Axle

Steering with double T-cross section beam

Rear Axles

Pressed axle housing, central single reduction with planetary wheel reduction
and with differential lock

Chassis

Frame: U-profile parallel ladder frame with section of 300×80×8mm and reinforced
subframe, all cold riveted cross members.

Aluminum fuel tank:400 L capacity with locking fuel cap, fitted to the off side of the chassis

Steering

ZF power steering, model ZF8098,hydraulic steering with power assistance.
Ratio: 22.2-26.2

Braking System

Service brake: dual circuit compressed air brake
Parking brake(emergency brake):spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake

Tyres

295/80R22.5, 7pics

Cab

HW76 Cab, one berth, all steel forward control, 55°hydraulically tiltable to the front,

2-arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped

adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, exterior sun visor, adjustable roof flap, stereo radio/cassette recorder, safety belts, adjustable steering wheel, air horn, with 4-point support fully floating suspension + shock absorbers

Electrical System

Operating voltage:24V,negative grounded
Starter:24V.7.5Kw
Alternator:3-phase,28V,1500W
Batteries:2*12V,165Ah/180Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Instrument

Active check central controller with indicators, with this integral instrument the daily manual checks
on the vehicle and combined indicators of compressed air pressure, coolant temperature, engine oil
pressure and battery charging.

Dimensions in mm

Wheel base                                                        3500
Overall length                                                      6110
Overall width                                                       2496
Overall height                                                      3668

Weight in kg

Dead weight                                                        7100
Front axle loading capacity                                 6500
Rear axle loading capacity                                 11500

Performance

Maximum driving speed(km/h)                           80
Fuel consumption(L/100km)                              30-33

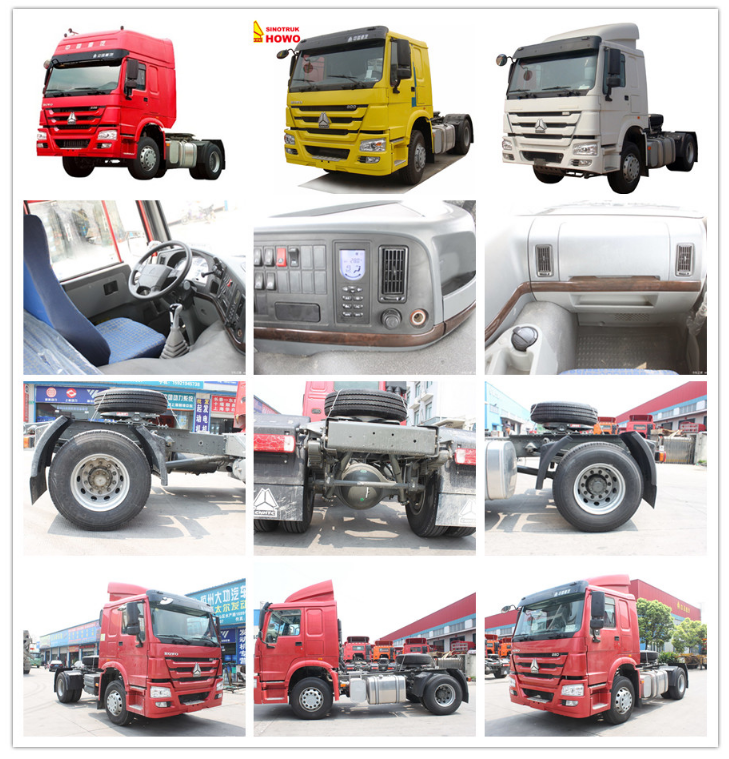

Picture Shows




Applications:

It’s suitable for towing all kinds semi trailer which is used in Logistics business, construction site and Mining area.

This model is the proven product of SINITRUK, which features reliable structure, great loading capacity, excellent power from 336-420HP, reliable performance. This model can meet the requirements of different road conditions. This model can satisfy your need of long distance highway transportation.

The fifth version of the highway transport is equipped with iron reinforced frame, Iron shell transmission and two-stage reduction drive axle which can loaded16 ton, single-stage reduction drive axle, which can loaded 16 ton is optional, mainly used for comprehensive road conditions and overloading of the transport conditions.


Competitive Advantage:

1)with all kinds of truck model, which can fulfill your requirement

2)the key parts adopt the world's top technology products

3)based on strong technical support and top level technology make the trucks with high quality and more reliable

4)it has higher safety and running efficiency.

5)excellent appearance of cabin, safety, reliable

6)low fuel consumption

7)strong enough engine

8)competitive price, cost-effective

9)quick and efficient spare parts supply bring you more convenient

10)fast delivery time, we can arrange production according to your needs exactly and Quickly

11)professional import and export dealing procedure, make customs clearance more high efficiency

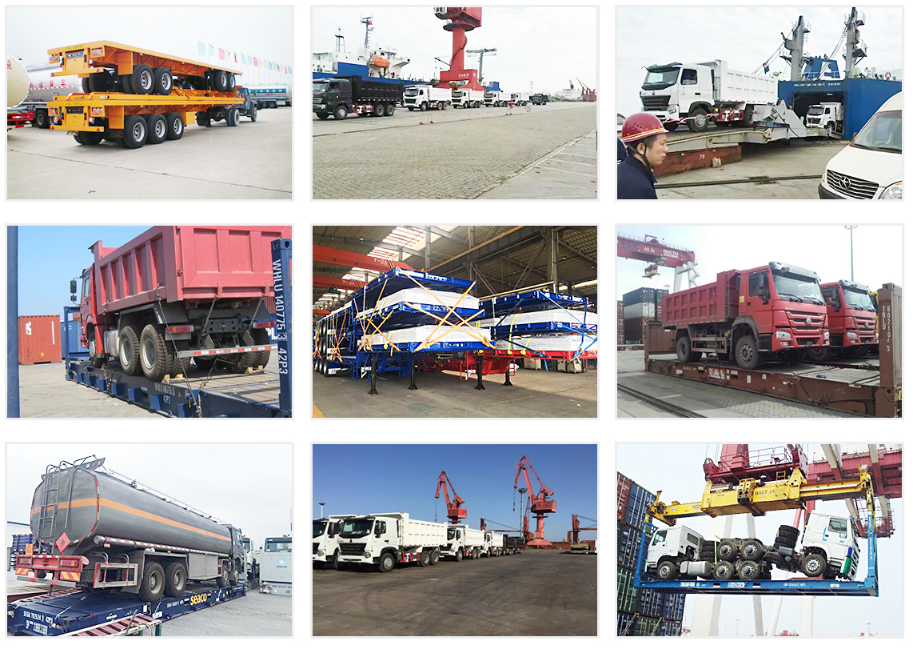

Batch export of vehicles
