Mounted Crane Truck

Engine : YC4E160, 160HP Chassis model : ZZ1127G4215C1 Mixing capacity : 5 Tons Crane

PRODUCT MANUAL

Overview

Quick Details
Condition: New Capacity (Load): 11 - 20t Drive Wheel: 4x2
Horsepower: 150 - 250hp Transmission Type: Manual
  • Emission Standard:

Euro 2
Fuel Type: Diesel Engine Capacity: 4 - 6L Size: 6900X2400X3450mm
  • Gross Vehicle Weight:

16000 kg Place of Origin: Hubei, China (Mainland) Brand Name: SINOTRUK
Model Number: ZZ1127G4215C1

Supply Ability

Supply Ability: 300 Unit/Units per Month


Packaging & Delivery

Packaging Details: Nude or Waxing in Roro or bulk ship

Port: CHIAN MAIN PORT

Lead Time :30 working days after received your advance payment


SINOTRUK HOWO 4X2 Crane Truck with 5 ton XCMG Mounted Crane

Truck with loading crane can lift and transport all kinds of goods, widespread use in transportation, civil construction (including constructional engineering, road and bridge engineering, municipal constructional engineering, mechanical engineering etc.), landscape sanitation, electricity and telecommunication industry, field operation, pipeline transportation, stone industry, dock cargo handing and long distance goods transfer. After installed additional device, it can be used for traffic accidents


Specification



Chassis Model ZZ1127G4215C1
Drive Type 4×2
Engine YC4E160, 160HP
Cabin 2080mm width cab(without sleeper, air-conditioner and two new-style seat)
Transmission DC6J65TC(6 forwards & 1 reverses)
Front Axle 3.6 Tons
Driving Axle 10.5 Tons
Clutch hydraulically operating with air assistance
Rim/ Tire 9.00R20
Wheel base 5200(mm)
Lifting Capacity 5 Tons Crane (XCMG brand)
Dimension of cargo body 5250*2300*550mm, Bottom:3mm Side:1.5mm
Lifting Height 9.5m
Overall dimension 7750×2350×3400mm
The curb weight 6300(Kg)
Gross weight 12490 kg
Max. speed 95km/h
Color White, red, green, golden and so on.





Crane basic
Crane type SQ5SK2Q
Maximum lifting quality 5000 kg
Maximum lifting moment 12.5 T.M
Recommended power 18 KW
Max Oil Flow of Hydraulic System 32 L/min
Rated pressure of hydraulic system 20 Mpa
Oil tank capacity 90 L
Rotary angle 360°All Rotatio

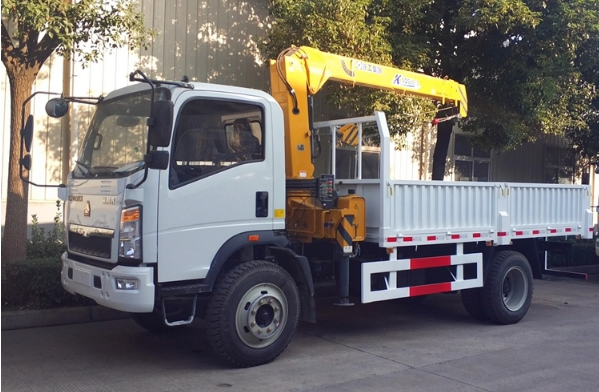

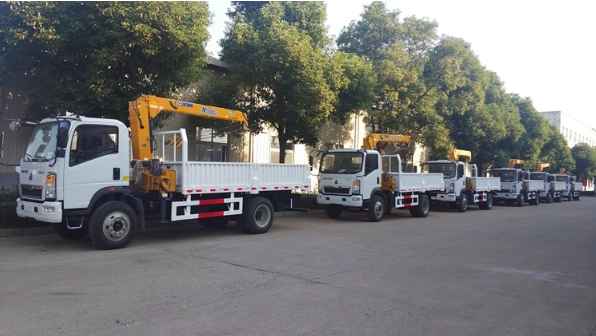

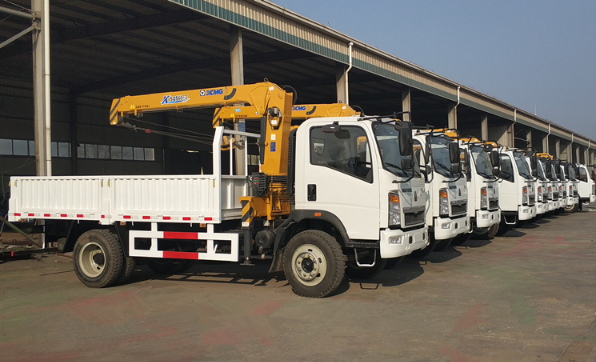

Picture Shows









Applications:

Truck Mounted crane can widespread use in transportation, civil construction (including constructional engineering, road and bridge engineering, municipal constructional engineering, mechanical engineering etc.), landscape sanitation, electricity and telecommunication industry.

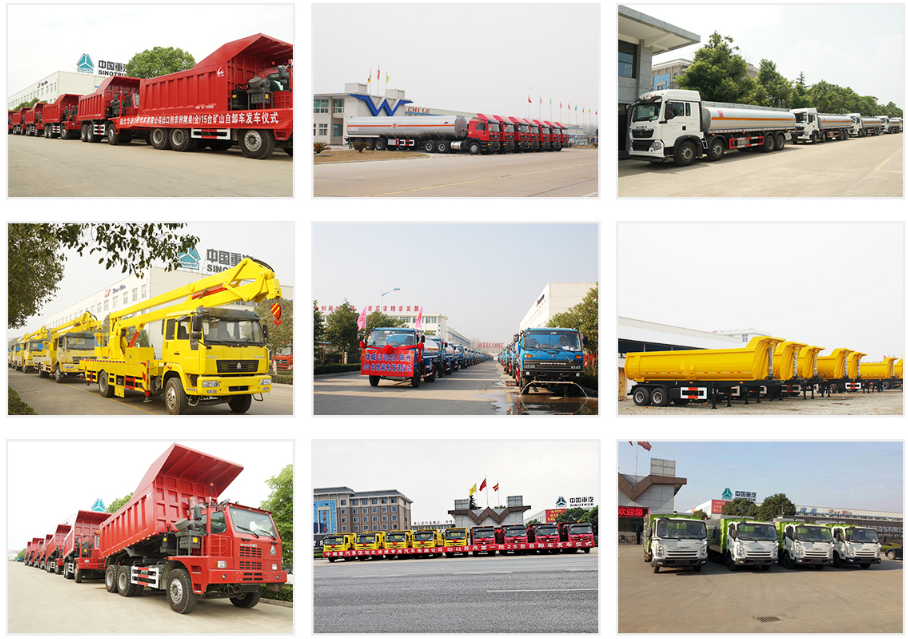

Batch export of vehicles

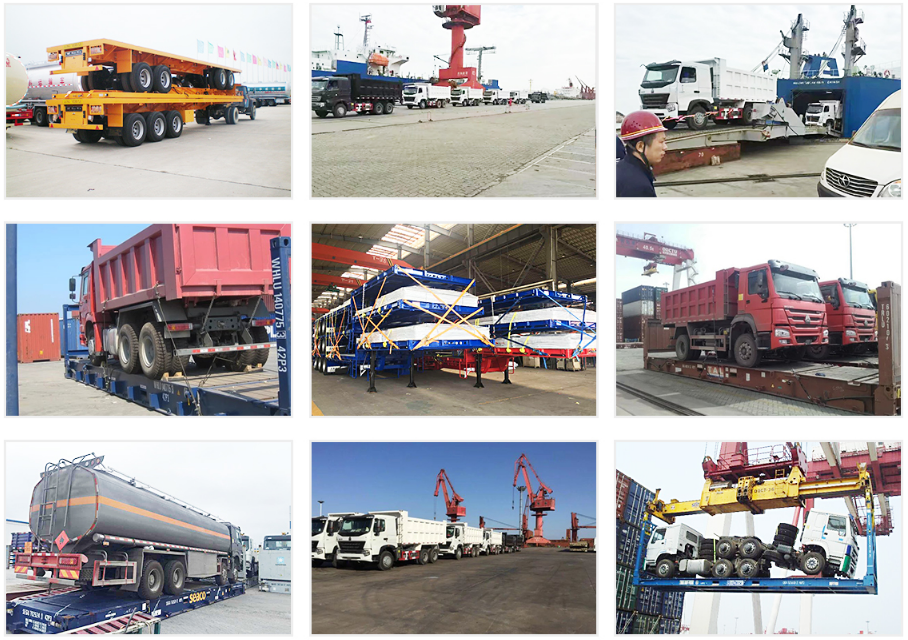

Ocean Shipping
