|Condition:||New||Capacity (Load):||41 - 50t||Drive Wheel:||8x4|
|Horsepower:||351 - 450hp||Transmission Type:||Manual||
|Fuel Type:||Diesel||Engine Capacity:||> 8L||Size:||11985X2496X3050mm|
||31000 kg||Place of Origin:||Hubei, China (Mainland)||Brand Name:||SINOTRUK|
|Model Number:||A7||Engine power:||371HP||Displacement:||9.726L|
|Wheels number:||12 wheels||Transmission:||HW19710||
||16000kg*2||Type:||12R22.5||Spare tyre:||with one spare tyre|
||12R22.5||Spare tyre:||with one spare tyre||cargo body size:||8000x2300x1500mm|
Supply Ability: 300 Unit/Units per Month
Packaging & Delivery
Packaging Details: Nude or Waxing in Roro or bulk ship
Port: CHIAN MAIN PORT
Lead Time :45 days after 30% deposit
Cargo truck is mainly designed for transporting goods and for business use. It also can divided into 4X2, 6X2, 6X4, 8X4 and so on, it's widly used in Logistic industry. The engine from 266HP to 420HP can be choosed.The Truck brand also have HOWO, Golden Prince, Hohan, HOWO A7 and so on.
By its applications,it can be classified two types: general cargo truck and multi-purpose truck and the former can be divided in two parts: van and flatbed tow truck. And the latter is mainly used to carry cargo in terms or its design and structure, but there are folding seats or fixed seats behind the driver’s seat.
Therefore, this truck could hold more than 3 passengers.
As a professional cargo truck supplier in China, we offer a wide range of products that includes compressed garbage truck, tractor truck, water tank truck, and low plate semi-trailer, and so on.
|Cabin||HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat)|
|Transmission||HW19710(10 forwards & 2 reverses)|
|Front Axle||HF9(1X9 Tons)|
|Driving Axle||ST16(1X16 Tons)|
|Clutch||hydraulically operating with air assistance|
|Rim/ Tire||12R22.5, with one spare tire; optional:11.00R20, Radial tyre|
|Dimension of cargo body||9280*2300*800mm, Bottom:3mm, Side:1.5mm|
|The curb weight||13560(Kg)|
|Gross weight||25000 kg|
|Color||White, red, green, golden and so on.|
It’s suitable for Logistics business, for transport all kinds of goods, such as machine, equipment, coal and so on .
1. Four independent braking systems
Our cargo trucks adopt four direct-operated pneumatic braking systems (front axle brake, rear axle brake, parking emergency brake, engine auxiliary brake), with automatic clearance adjustment. This, coupled with modem brake devices like ABS, makes your driving highly reliable and safe.
2. Wide-angle rear view mirror The luxury wide-angel rear view mirror provides the drive with unobstructed all-around visibility, further assuring driving safety.
Our cargo trucks are outlined with full and smooth lines, which better meets aerodynamic principles and greatly reduces the drag coefficient, thus significantly improving fuel economy.
Luxury and stylish integral bumper, elegant high-brightness headlights.

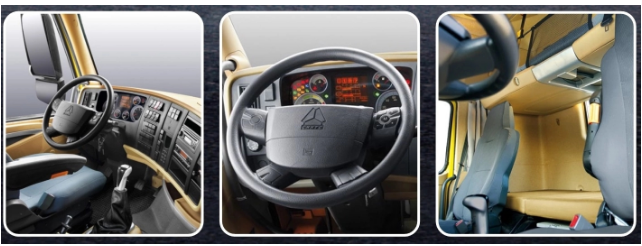

New soft interior and dashboard are both aesthetic and practical; detachable combination instrument is convenient to repair and maintain.
Electric window regulator, central electric control door lock
Low Fuel consumption
Low fuel consumption: 1200-1200 turn over wide economic speed low fuel consumption, a new combustion
principle, the second generation of Bosch common rail fuel injection system, high economic benefit.
Oil change interval is lengthen: euro Ⅱ consumption, road transport vehicles from the factory to change the oil for the first time, a maximum mileage of 30000 kilometers, so there is low transport cost.
High strength/ high rigidity/ long life block: vermicular cast iron body, similar strength cast steel, similar heat dissipation potential gray iron, strong anti-thermal deformation, high cost, can be adopted in few high end engines in the world due to its core technology.
1). Good economy: high-explosive pressure and optimized injection and combustion system, ensuring its low specific oil consumption at a wide range of sppds, Minimum specific oil consumption is 186/kwh.
2). Low nose: noise reaches the international level.
3). High-integration: volume of spare parts reduced 25% compared with the similar products in the world, highly reducing the failure points.
4). Long life of B10: reach the most advanced world level of heavy duty truck, 1.5 million km.
5). Long oil change interval: for Euro IV oil, the first oil change mileage( oil change interval) for the road vehicles since left factory shall be up to 100.000 km, for the oil selling bu Petrochina and Sinopec. it shall be up to 60.000 km, greatly reducing the cost.
HW series heavy yupe transmission is a new generation well-crafted product developed by SINOTRUK specially for the heavy duty truck, SINOTRUK own the independent intellectual property rights for it, with its unique structure home and aboard, its primary transmission adopts twin cuntershaft structure and auxiliary transmission adopts planetary deceleration structure, which make its bearing capacity stronger and its structure more reliable. The integrated small housing design allows legible gear and flexible gear shift.Presently, this type of transmission is applied to be engine for the heavy duty truck which power range is 336--420 ps, it is the first choice for the domestic heavy duty truck.
The driving axle adveloped by SINOTRUK consist of single stage reduction axle and double stage reduction axle, which loading capacity include 5, 9, 11, 13, 16, 26 tons, matching SINOTRUK various series vehicles.
1). All the bodies adopt integral steel-framed structure, hard and firm, allowing high collision resistance and external force resistance.
2). Cab manufactured by the welding line composed by international advanced robots, safety and reliable top-level quality in China.
3). Automatic painting line consisting of robots ensuring the body appearance quality, corrosion prevention and weather resistance, increasing the effective more than 2 times compared to the conventional electrophoresis painting and allowing higher salvage value of vehicle.
4) Each safety performance index completely meeting the latest legal requirements of China , comprehensively enhancing the safety.

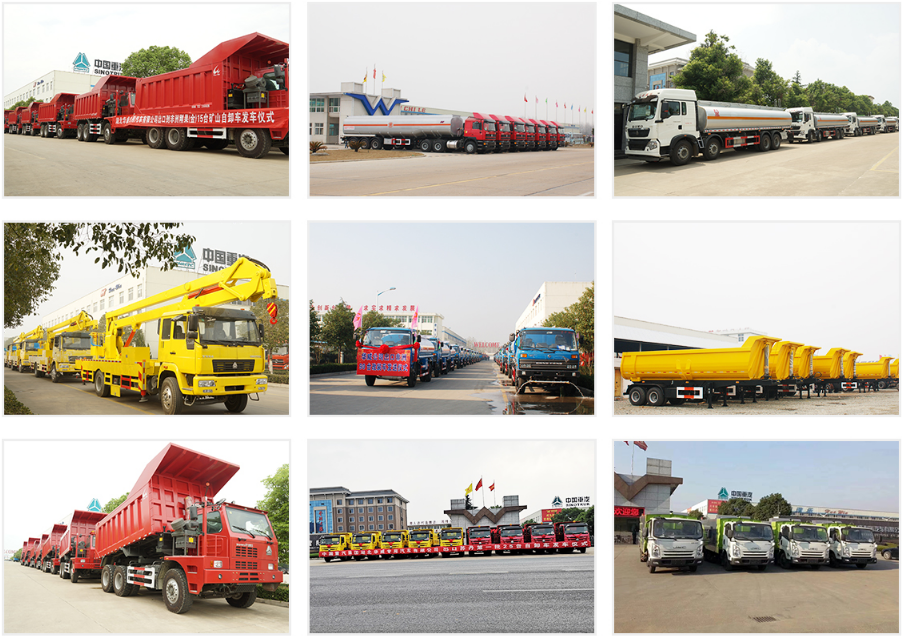

Batch export of vehicles
