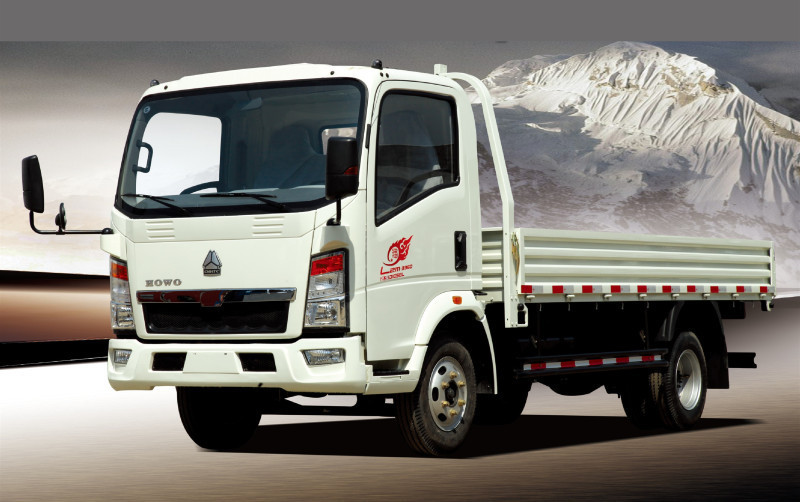

HOWO 4X2 Side Wall Light Cargo Truck

Engine Power : 95HP/102HP/110HP Wheel Base : 2800/3360mm Loading Capacity : ≤3Ton

PRODUCT MANUAL

xx

CP

Specification

HOWO light truck 1760 single row

Drive type

4×2

Engine

Brand: YUNNEI

Model: YN4100QBZL

Power:110hp

Brand: ChaoYang

Model: CY4100ZLQ

Power:95hp

Brand: ISUZU

Model: JE493ZLQ3A

Power:102hp

Transmission:

WLY535

WLY6T100

WLY535

WLY6T100

5 forwards &

1 reverse

6forwards

1 reverse

5 forwards &

1 reverse

5 forwards &

1 reverse

Wheel base(mm)

3360

2800

3360

2800

3360

Chassis Model

ZZ1047D3413C145

ZZ1047C2813D145

ZZ1047D3413C145

ZZ1047D2813D138

ZZ1047D3413D1Y42

Box dimensions(mm)

4200×2050×400

3650×2050×400

4200×2050×400

3650×2050×400

4200×2050×400

Emission standard

Euro 3

Curb weight

2165 kg

Total weight

4495 kg

Rated load

1-3ton

Max. speed

90 km/h

Drive style

LHD

steering

Power steering

Cabin:

1760mm width cabin single row style, without sleeper

Tire:

7.00R16 radial tyre

Brake:

air brake;spring brake

Clutch

Hydraulically operating with air assistance

Over length of the truck:

5480*2100*2350 / 5995*2100*2350mm

Optional Equipment : air condition; Engine exhaust brake;central locking;power window;leather seat
