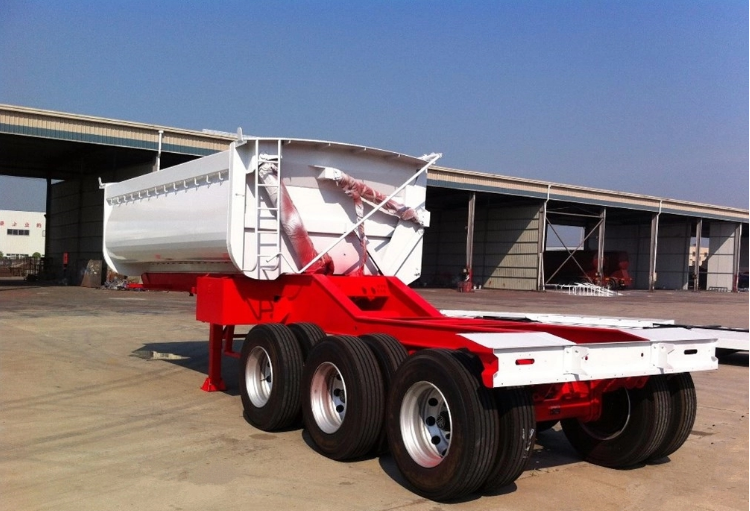

Side Tipper Semi Trailer

ExtendableLowBedSemiTrailer◆TheDumpercanbeclassifiedbylftingway,oneisreardump,anotherissidedump.◆Choosing2-axlesor3-axlesaccordingtotheloadingrequestofcustomer.◆Dumpbodymaterial:Q235,Q345,Q610orwearresistingsteelforthedumpbody.◆Typeofdumpbody:Ushapeorsquareshape.◆Thelengthofdumpbodyisfrom7Mto12M,providingrelateddesignaccordingtotherequirementofcustomer.◆Choosingdomesticorfamousforeignbrandforthemainpartsofhydraulicsystem.◆Optimizationdesignaccordingtothetransportgoodsofcustomer.

PRODUCT MANUAL

Overview

Quick Details
Use: Other Trailers OEM No.: Requirement Max Payload: 40T
Size: 9000*2500*3930mm Place of Origin: Hubei, China (Mainland) Brand Name: HW
Model Number: Semi-Trailer Tare weight: 8000 Payload: 40000kgs
loading capacity: 24 cbm Chassis: heavy duty and extra durability I beam Axle: FUWA K-Hitch 11.5T/13T
Suspension: Mechanical Suspension Leaf spring: Leaf spring Cylinder: HYVA brand
Kingpin: JOST bolt in king pin Landing Gear: JOST C200

Supply Ability
Supply Ability: 300 Unit/Units per Month
Packaging & Delivery
Packaging Details: We transport the vehicle in nude ,or by roro vessel,or in wax by bulk vessel or by container if possible. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
Port: Tianjin, Shanghai, Qingdao or as your needs
Lead Time:40 days

The best quality heavy duty tri axles  side tipper
Safe & Easier Discharge
Side tippers are often utilised for carrying a variety of products from bulk commodity to raw material and mining products, characterised by side discharge capabilities.
Side Tipper Range
● General Purpose: for cartage of sand, gravel and other aggregate materials.
● Mining: heavy duty construction for cartage of raw mining products on or off road.

产品



Competitive Advantage
Frame body Q345B high strength structure steel, automatic submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect.
Well-known brand axles, suspension systems, high performance, and reliable to use, to ensure the good performance of the vehicle.

Specification

DIMENSIONS

Tare Weight

Approx.8500kgs

Payload

30000kgs

Overall Length

10100mm

Overall Width

2490mm

Overall Height

3050mm

DUMPER BODY

Volume

Appox 24 m3

Bin and door

5mm thickness by Hardox 450 or NM450

SPECIFICATION

Chassis

Heavy duty and extra durability designed Fabricated I-Beam - 345 MPa welded by automatic Submerged-Arc processes. Top Flange 16mm,width 140mm; Double Middle Flange 6mm and 8mm ; Bottom Flange 16mm,width 140mm.

Axle

3 axles

K-Hitch brand ADR approved 11.5 T

Cylinder

two set of hydraulic tip cylinder Ø 150mm, door cylinder Ø 80mm

Single Stage, Double Acting, Externally Mounted to each end

Hydraulic system

One (1) Air-Operated Directional Control Valve with manual over ride.

Two (2) 1" Hydraulic hoses fitted to front of subframe with 1" BSP compatible couplings

Suspension

K-Hitch brand mechanical with 8-piece leaf spring. Air bag is optional

King Pin

JOST brand 2 or 3.5'' Two bosses with 90mm Kingpin to suit Tandem or Tri Axle Dolly

Landing Gear

Jost brand Two Speed, manually operated, with Rubber Flap Guard to front

Wheel Rim

8.25R22.5 10 stud steel rim 13 pieces PCD 285.75; alloy rim is optional

Tyre

11R22.5 tubeless tire, 13 pieces

Spare Tire Rack

Underslung accommodates 2 spares, Dual Swinging type

Braking System

 3 sets of T30/30 Spring brake chamber; 40L air tanks with two outlets to suit OZ standard, air control valve and air tube is not included

Mud guard

Spring Tension Rubber over Tri Group

Finish

Sandblasted to grade 2.5; 2k Primer and Painted in 2-Pack to required color

Light & wire

Orion brand ADR LED Combination Rear Lights, and LED Side lights.

with ADR standard wire and 7-pin socket

Others

Road train Spec.



产品



产品


Optional
There are several choices in the construction of side tippers, depending on the use of the side tipper and the client’s requirements. Clients can choose between steel, stainless steel, high strength steel and aluminium construction.
HUAWIN provides top of the range suspensions, with the option of mechanical or airbag (road friendly).Where applicable, General Transport Equipment offers Electronic Brake Stability (EBS) as the highest standard available.
Side tipper A trailer for Road train and dolly(2 axles or 3 axles) are available.
Tarpaulin system is available, manual or electronic control.
产品

产品

Other dump trailer products

产品


Applications

产品



Competitive Advantage:

产品
1)severall kinds of cargo body structure , make it light weight , high rigidity , high loading capacity.
2)adopt the high strength steel, make it has a long service life.
3)The imported hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
4)excellant apperance of cabin, safety, reliable.
5)lower fuel consumption.
6) strong enough engine.
7)with all kinds of truck model, which can fulfil your requirements.
8)the key parts adopt the world's top technology products.
9)based on strong technical support and top level technology make the trucks with high quality and more reliable.
10)competive price, cost-effective.
11)quick and efficient spare parts supply bring you more convenient.
12)fast delivery time, we can arange production according to your needs exactly and quickly.

Batch export of vehicles

产品


Ocean Shipping

产品
